Code | Template | Power W. | Instant Max Throw Kg | Work load Kg | Max Speed Recovery MT / MIN | Chain Ø mm | Qt. | price | |
MTO01721-01 | OBI 1000 12 V | 1000W 12V | 1250 KG | 130 KG | 25 | 6-8-10-10 DIN 766 |
€ 2074.00
€ 1348.10
-35%
|
||
MTO01721-02 | OBI 1000 24 V | 1000W 24V | 1290 KG | 140 KG | 25 | 6-8-10-10 DIN 766 |
€ 2104.50
€ 1367.93
-35%
|
||
MTO01721-03 | OBI 1000 12 V | 1500W 12V | 1350 KG | 150 KG | 26 | 6-8-10-10 DIN 766 |
€ 2074.00
€ 1348.10
-35%
|
||
MTO01721-04 | OBI 1000 24 V | 1500W 24V | 1390 KG | 160 KG | 26 | 6-8-10-10 DIN 766 |
€ 2104.50
€ 1367.93
-35%
|

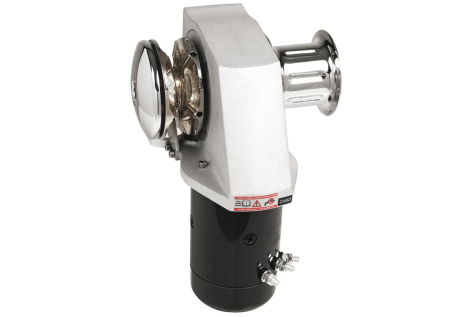

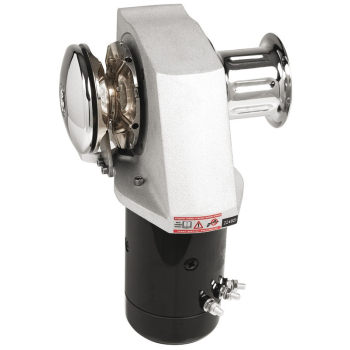

Windlass OBI 1000 MZ Electronic
Horizontal axis windlass in anodized aluminum alloy with chromed barbotin cover. Obi 1000 has the manual free fall chain system as standard. Available with 1000W or 1500W motors (12V or 24V) and 6mm, 8mm or 10mm chain.
