-25%

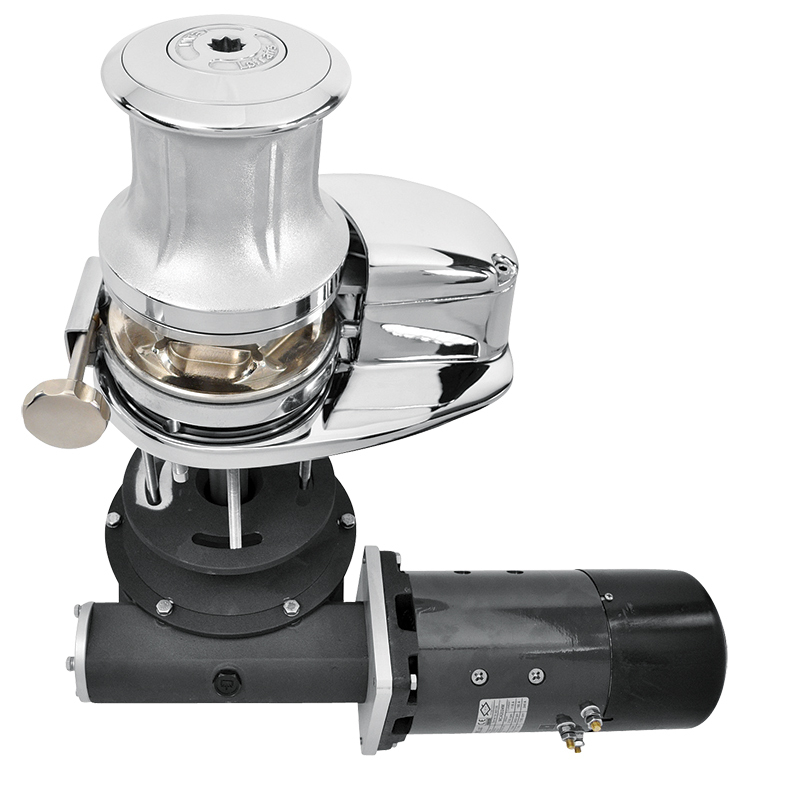

Windlass Lofrans X4 Inox Round Base

Brands LOFRANS'

starting from € 4.949,19 € 6.598,92 -25%

iva inclusa

Code	Template	Template	For chain D mm	Qt.	price
MTO02410-01	2300W 24V cw	Basso Profilo	12mm ISO 4565 / 13mm DIN 766		€ 7227.40 € 5420.55 -25%
MTO02410-02	2300W 24V cw	Con Campana	10 mm, ISO 4565		€ 7541.65 € 5656.24 -25%
MTO02410-03	2300W 24V cw	Con Campana	12mm ISO 4565 / 13mm DIN 766		€ 7541.65 € 5656.24 -25%
MTO02410-04	2300W 24V ccw	Con Campana	12mm ISO 4565 / 13mm DIN 766		€ 7541.65 € 5656.24 -25%
MTO02410-05	2700W 24V ccw	Basso Profilo	12mm ISO 4565 / 13mm DIN 766		€ 8170.12 € 6127.59 -25%
MTO02410-06	IDRAULICO - 8cc ccw	Con Campana	12mm ISO 4565 / 13mm DIN 766		€ 7227.40 € 5420.55 -25%
MTO02410-07	IDRAULICO - 8cc ccw	Con Campana	14 mm		€ 7227.40 € 5420.55 -25%
MTO02410-08	IDRAULICO - 8cc cw	Con Campana	12mm ISO 4565 / 13mm DIN 766		€ 6598.92 € 4949.19 -25%
MTO02410-09	IDRAULICO - 8cc cw	Con Campana	14 mm		€ 6598.92 € 4949.19 -25%
MTO02410-10	2700W 24V cw	Con Campana	12mm ISO 4565 / 13mm DIN 766		€ 8170.12 € 6127.59 -25%
MTO02410-11	2700W 24V cw	Con Campana	14 mm		€ 8170.12 € 6127.59 -25%

Windlass Lofrans X4 - Vertical Windlass

Main features:

- Luxury chromed bronze base and construction bell
- With Bell or Low profile
- Independent Gypsy / Gypsy and bell operation
- Manual release of the chain
- Manual operation
- Magnet and chain counter pre-installed as standard
- Gearbox in anodized marine aluminum
- Heavy duty electric motor

Standard equipment:
- Double direction solenoid pack
- Handle
- Gypsy / Gypsy for CD chain / instruction manual

INSTALLATION MANUAL

** cw: The winch pulls clockwise
** cww: The winch pulls counterclockwise
