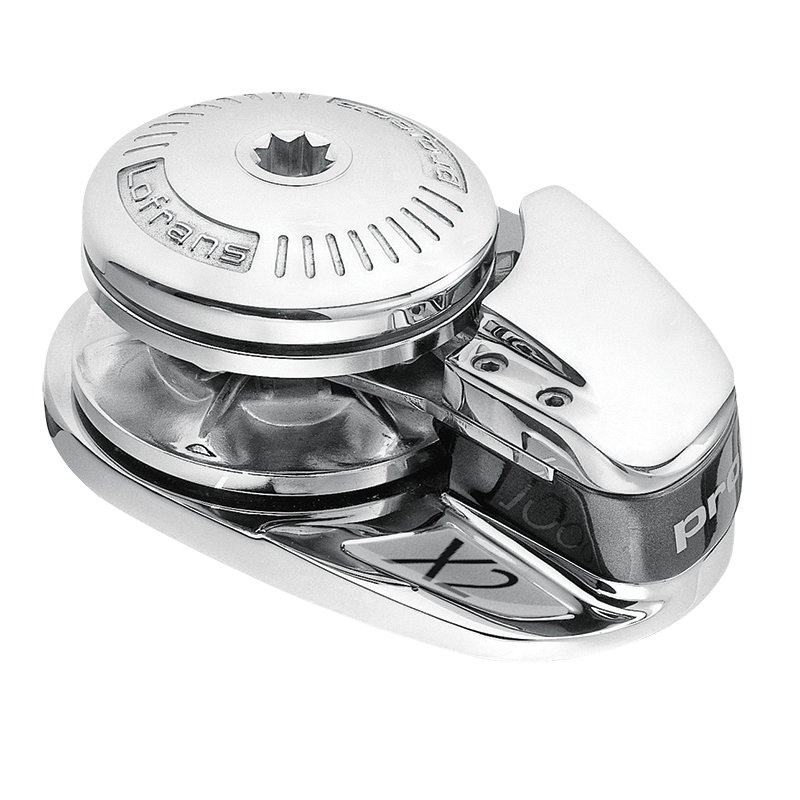

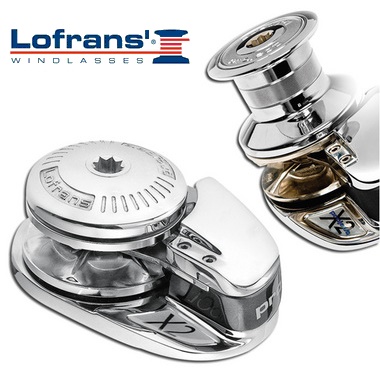

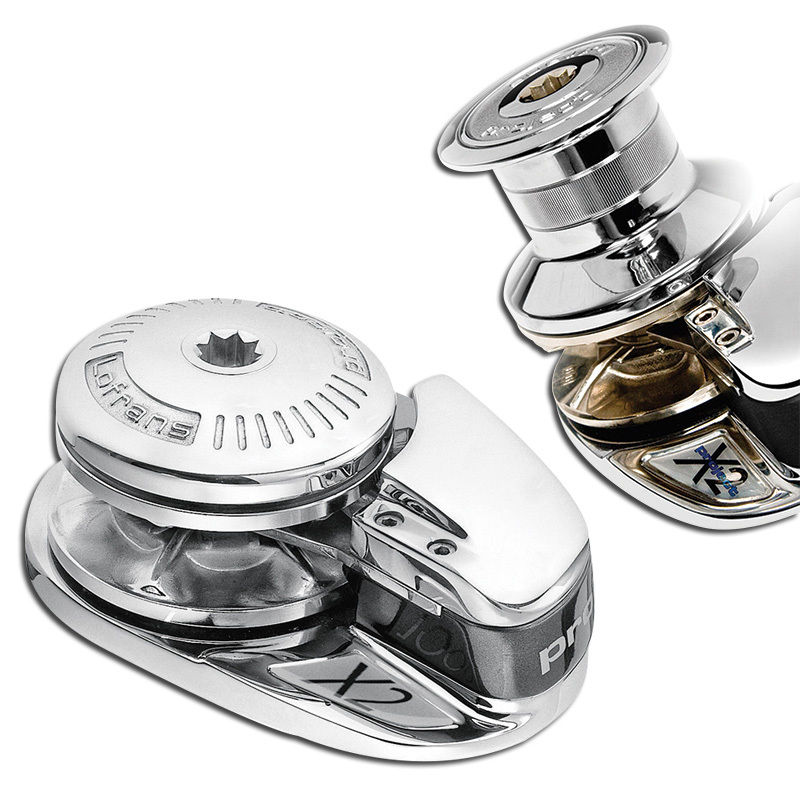

Windlass Lofrans X2

Lofrans X2 Vertical Windlass Windlass with 12 or 24 Volt motor and 700Watt 1000Watt and 1500Watt power, produced by Lofrans.

Main features:
- Barbotin / Gipsy and independent drum operation
- Possibility to use both the Top and the Chain
- Manual chain release
- Chain counter predisposition
- IP-67 motor
- Gearbox in Marine Anodized Aluminum
- 3 Years Warranty

The vertical winches of the "X" series are suitable for sailing and motor boats from 6m to 27m in length.
They have different drive configurations for each model. For the X2 and X3 winch there is a Plus version of AISI 316L stainless steel with mirror polishing that offers greater protection against corrosion.

The standard features of the X series winches are:
- Watertight stainless steel ball holding base (for better functionality and zero maintenance), which is a unique feature in the winch market.
- The clutch consists of two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid the use of keys and distribute the weight load correctly.
- The electric motor and gearbox are connected by a special coupling which is made by a socket for easy maintenance.
- There is a sensor in the base and a magnet in the gypsy so they can be connected to a chain counter.
- Manual operation so that the chain or rope can be recovered manually in the event of an electrical function failure.

Package Included:
Handle, Control Box, Base Gasket, Drilling Template, Fixing Screws and Pins and CD (manual)
