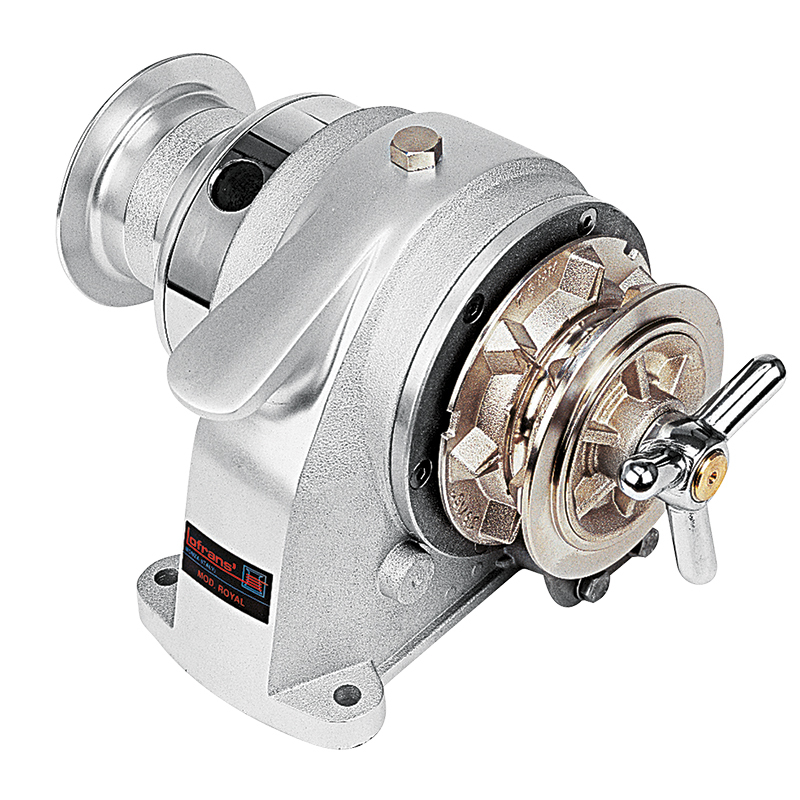

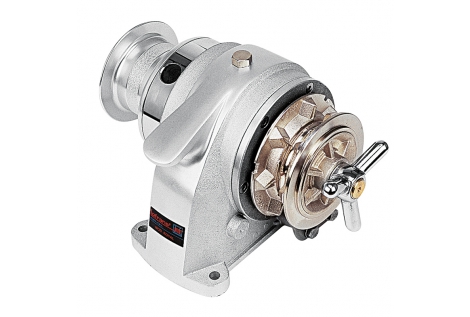

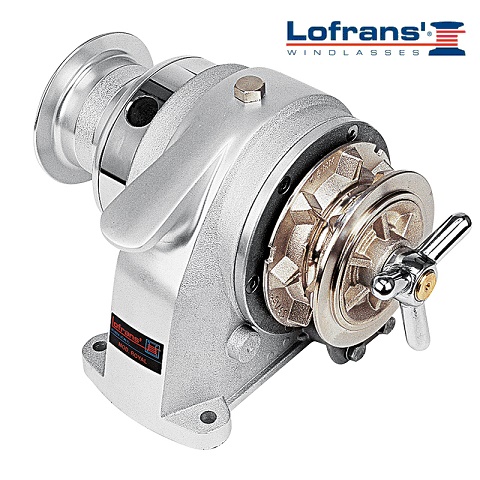

"Royal" Winch Double Effect Operation. Recommended for boats up to about 12 meters
Main features:
- Gypsy for chain: Ø 6-7-8-10 mm (1/4 "-5/16" -3/8 ")
- Lifting capacity: 200 kg
- Work force: 70kg
- Max pulling force 400kg
- Weight: 10 kg
- Construction in special corrosion resistant aluminum alloy
- Hot forged bronze gypsy
- Aluminum color finish: sandblasted, hand polished and anodized body.
- Possibility of manual release
- Equipment included: Lever
It exists in various models:
For 6 mm chain, ISO 4565 / DIN 766
For 7mm chain, ISO 4565
For 8 mm chain, ISO 4565 / DIN 766
For 10 mm chain, DIN 766
For 10mm chain, ISO 4565
BROWSE THE ROYAL CATALOG PAGE
BROWSE THE LOFRANS COMPLETE CATALOG
For any further information please do not hesitate to contact us!
