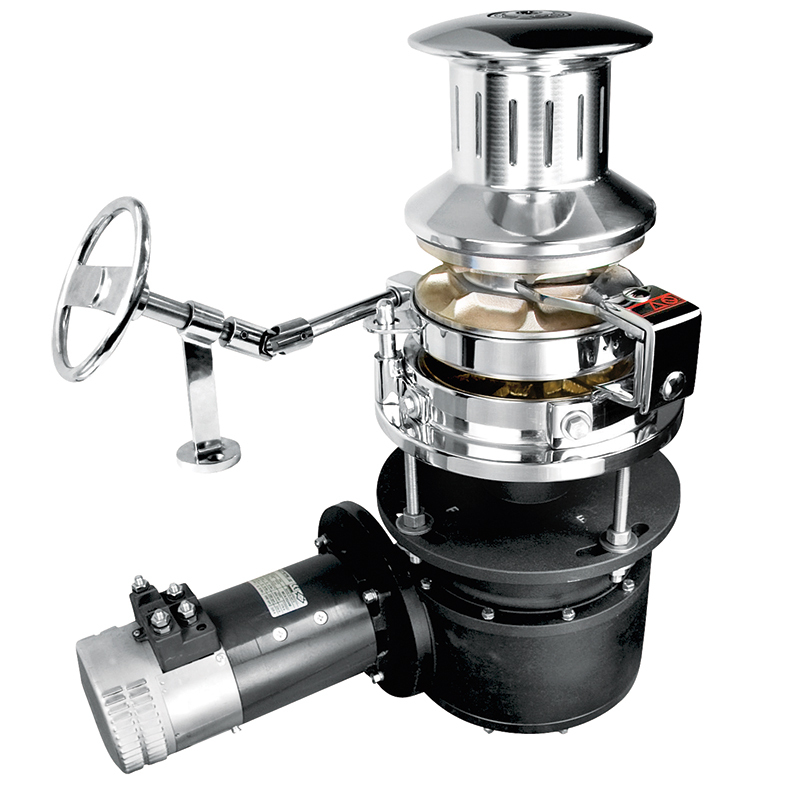

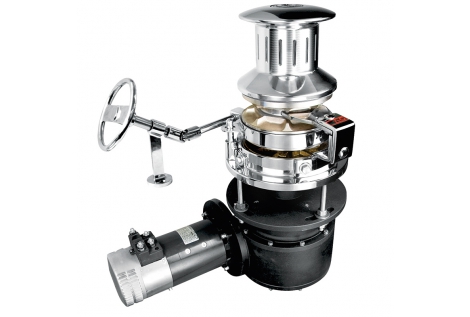

Windlass Lofrans Ercole Vertical Stainless Steel Round Base

Windlass Lofrans Ercole Vertical Stainless Steel Round Base

Main features:

Compact dimensions below deck
- Stainless steel construction
- Mirror polished AISI 316L
- Latest generation high torque electric motor capable of providing the necessary power in all marine conditions
- Band brake to facilitate chain control, thanks to a large, easy-to-manage handwheel
- Special high grip bell with rotation independent from the Gypsy, for warping function
- Independent gypsy / gypsy and drum operation Manual release of the chain
- Manual operation to recover the chain and anchor in case of electrical failure
- Internal ratchet to prevent the chain from getting stuck in the chain holder which could damage the plate
- Chain counter support integrated by the sensor inserted in the base and by the Gypsy magnet
- Also available in counter-clockwise rotation
- Planetary worm gearbox
- High efficiency Lofrans made of black anodized aluminum with gears in high mechanical resistance material
- Heavy duty electric motor
- Power: DC, AC and hydraulic

Available in customized versions

Standard equipment:
- Bidirectional solenoid pack (only for 24V version)
- Gypsy handle for CD chain / instruction manual
- Contact us for further detailed documentation.

INSTALLATION INSTRUCTION MANUAL

** cw: The winch pulls clockwise
** cww: The winch pulls counterclockwise
