WHALE Gusher Urchin pump BP9005 BP9013 BP9021

Mandatory on all category "A" and "B" boats in accordance with current standards. Highest quality products, made with the best materials on the market.

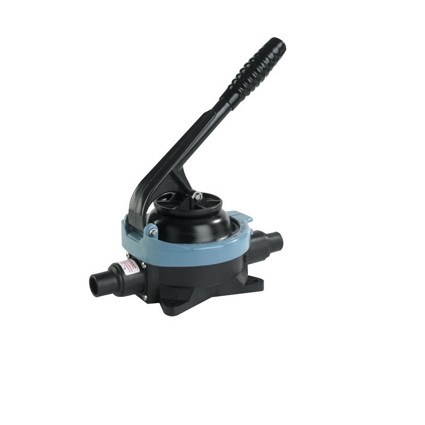

Gusher® Urchin - Bilge pump and for waste water transfer

Three versions: models with fixed handle, removable handle and bulkhead.
Robust and light construction.
The small size is ideal for confined spaces.
Easy-to-remove membrane locking clamp to direct the water connections and maintenance.
The gentle actuation allows a flow rate up to 55 lit / min.
Fittings with two diameters for 25 mm or 38 mm tubes.
Suitable for use on medium-small boats.
The nitrile membrane (optional) makes it suitable for the transfer of diesel fuel (maintenance kit AK9011).

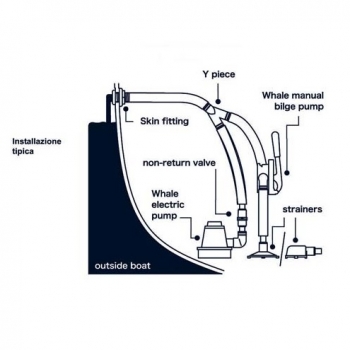

Typical uses
Emergency bilge pump
Emptying tanks
WC drain

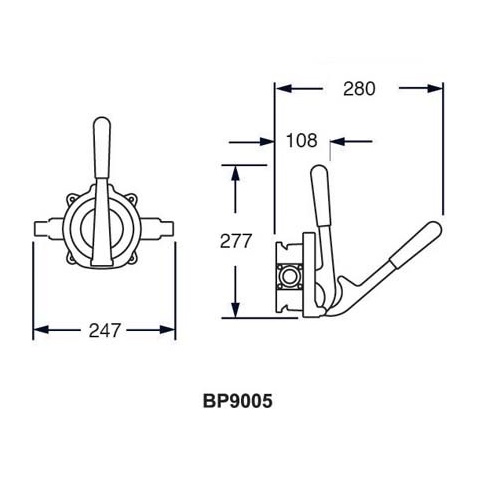

BP 9005 with fixed handle.

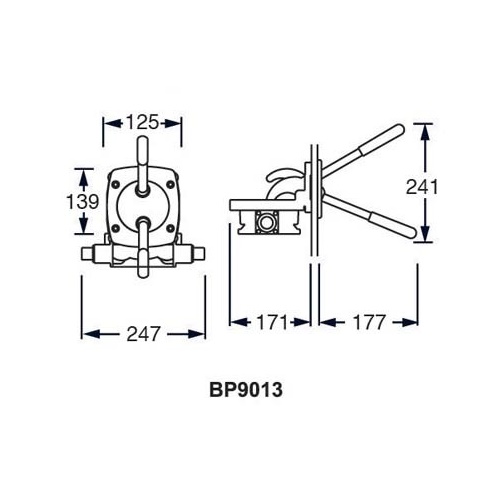

BP 9013 recessed / bulkhead

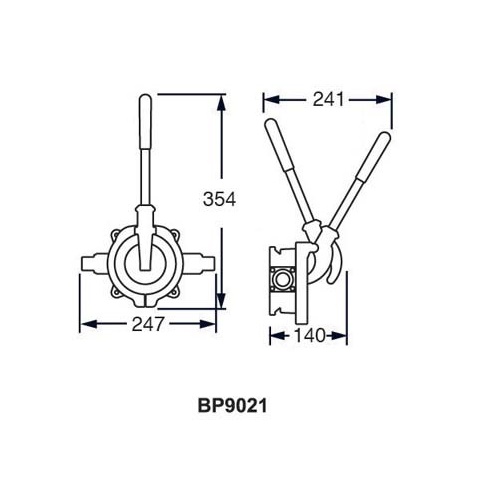

BP 9021 with removable handle

25 mm or 38 mm tube connections
Materials Pump body: reinforced polypropylene - Ring nut: acetate - Membrane: Neoprene (also available in Nitrile) - Handle, spring and screws: stainless steel
Materials in contact with fluids Reinforced polypropylene, Nitrile, Neoprene, stainless steel
Maintenance kit AK9003: Neoprene parts - AK9011: Nitrile parts for oil and diesel
Contains: Membranes, Valves and circular clips
Accessories AS8680: Removable spare handle (for BP 9013 and BP 9021) - AS8681: Fixed spare handle (for BP9005)
Maximum suction 4 m
Maximum head 3 m
