Vitrifrigo Compact 7000 Btu / h air conditioner

Brands VITRIFRIGO
-
Code: MTO01555

(0)

€ 2.569,50 € 4.507,90 -43%

iva inclusa

quantity

MACS air conditioners in assembly kits, suitable for air conditioning
a single room or two adjacent rooms.

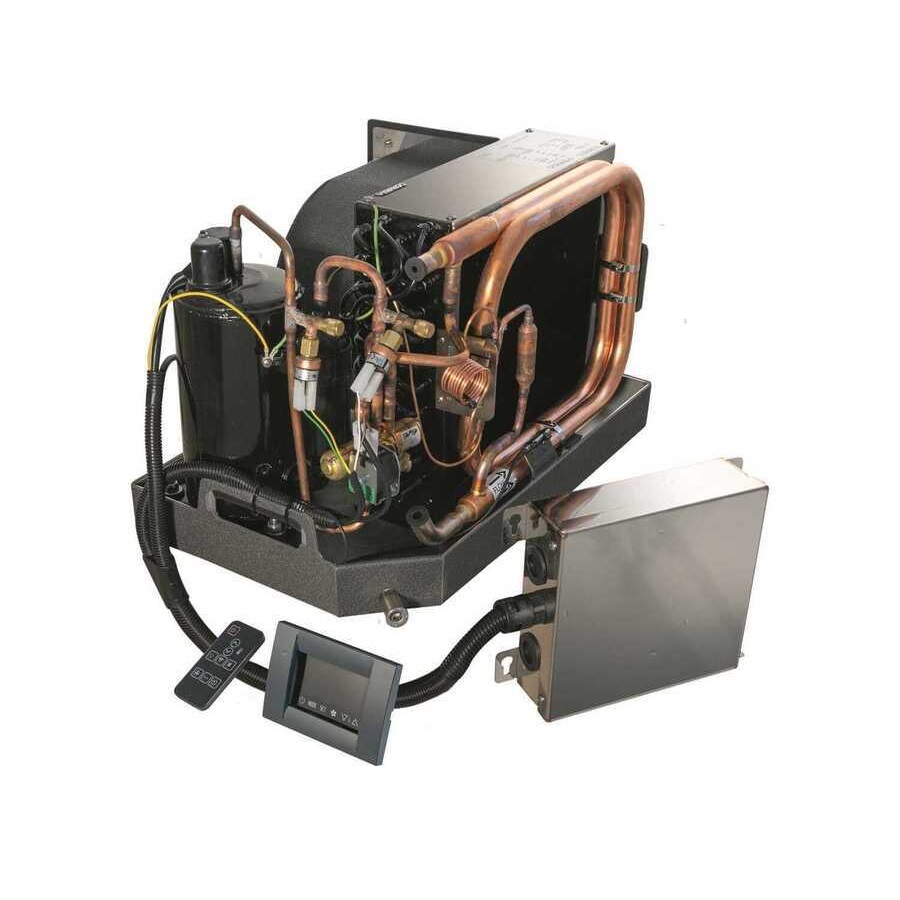

Monobloc structure comprising compressor, condenser, evaporator and
fan, specific for installation on board, with air movement
in insulated pipes and distribution through grids.
Pre-loaded compressor and evaporator unit, no special parts required
tools to be installed.
It works as an air conditioner (cold air) and as a heater (hot air).
For use on the dock or with power generator.

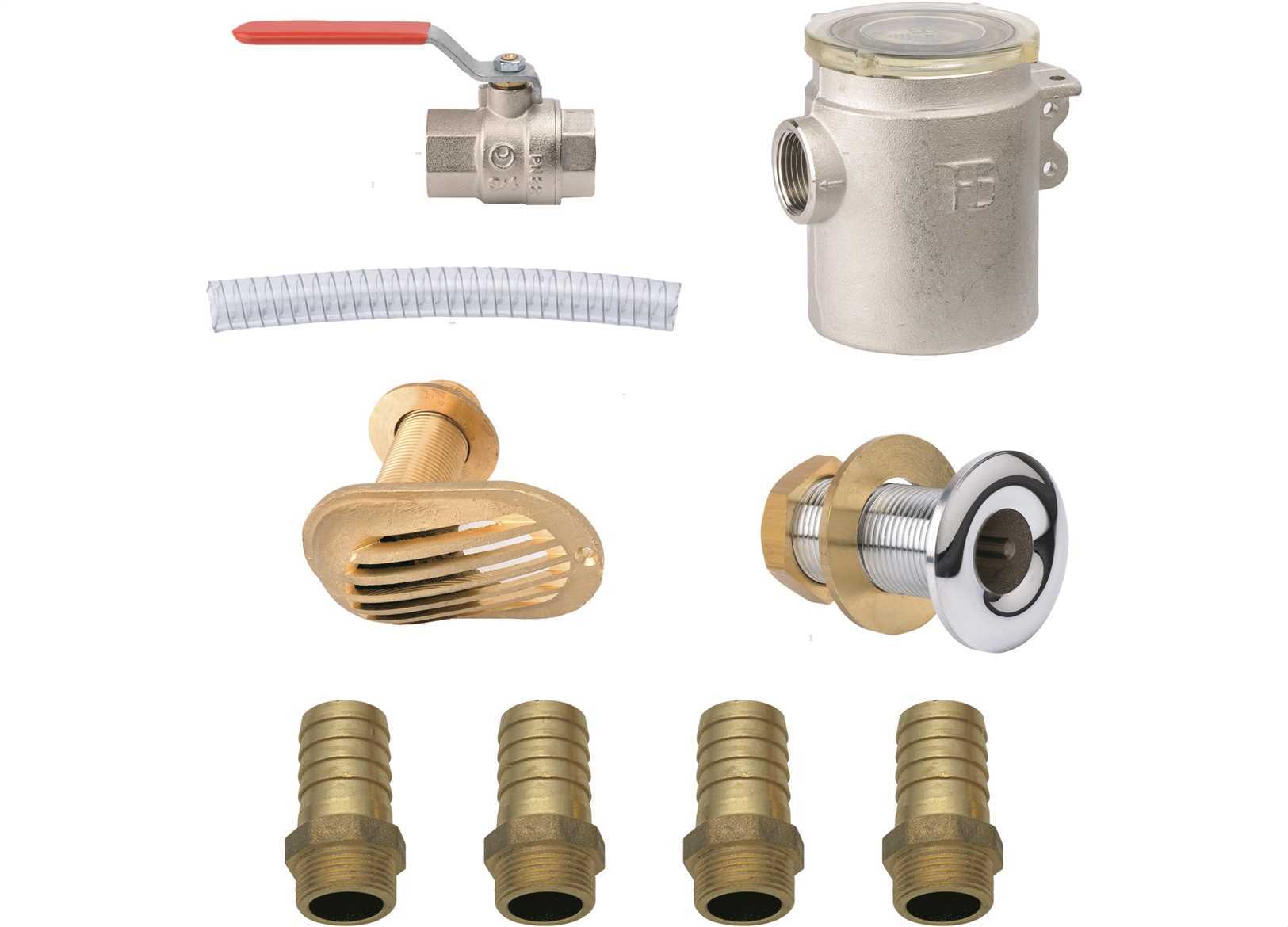

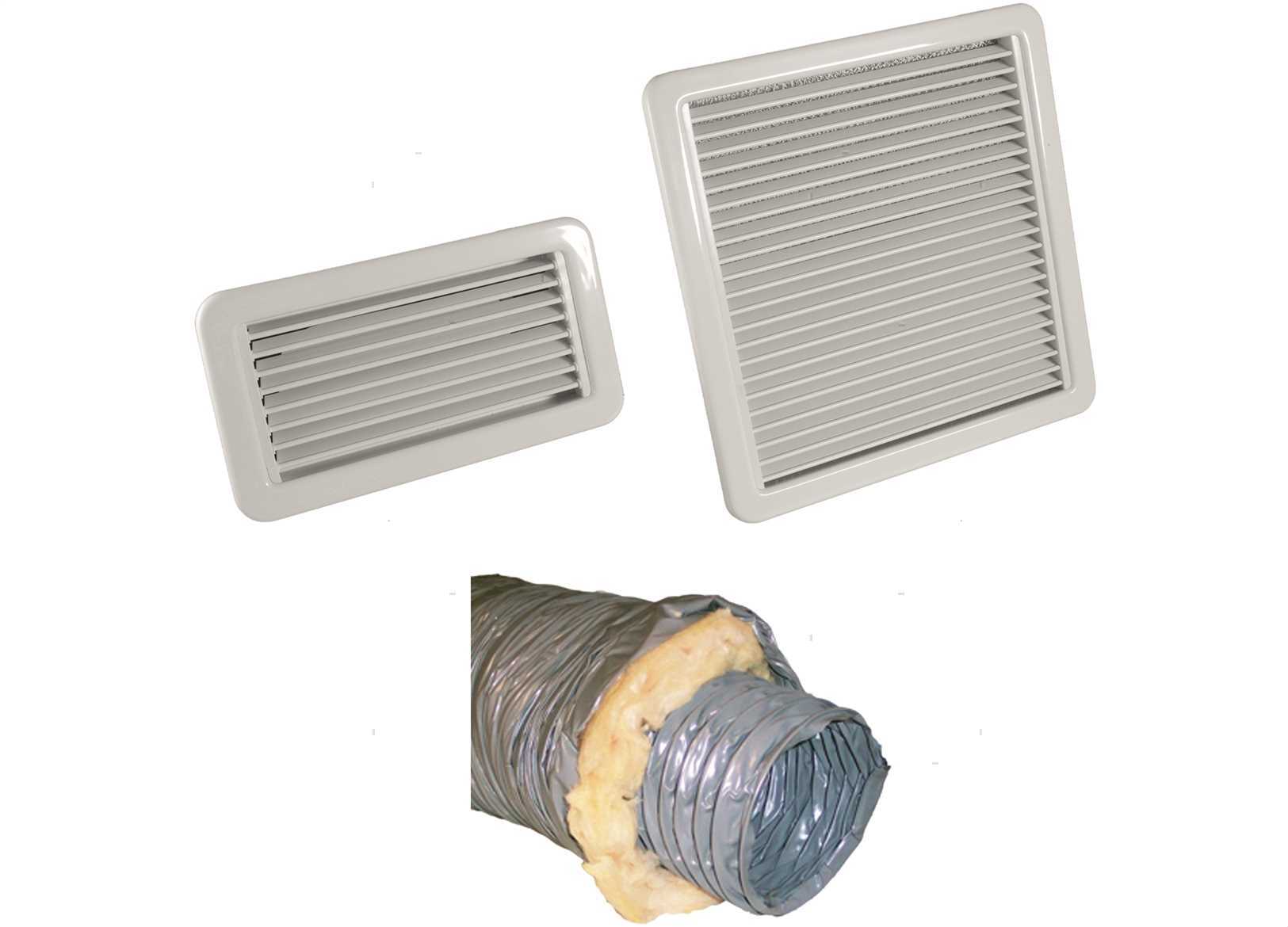

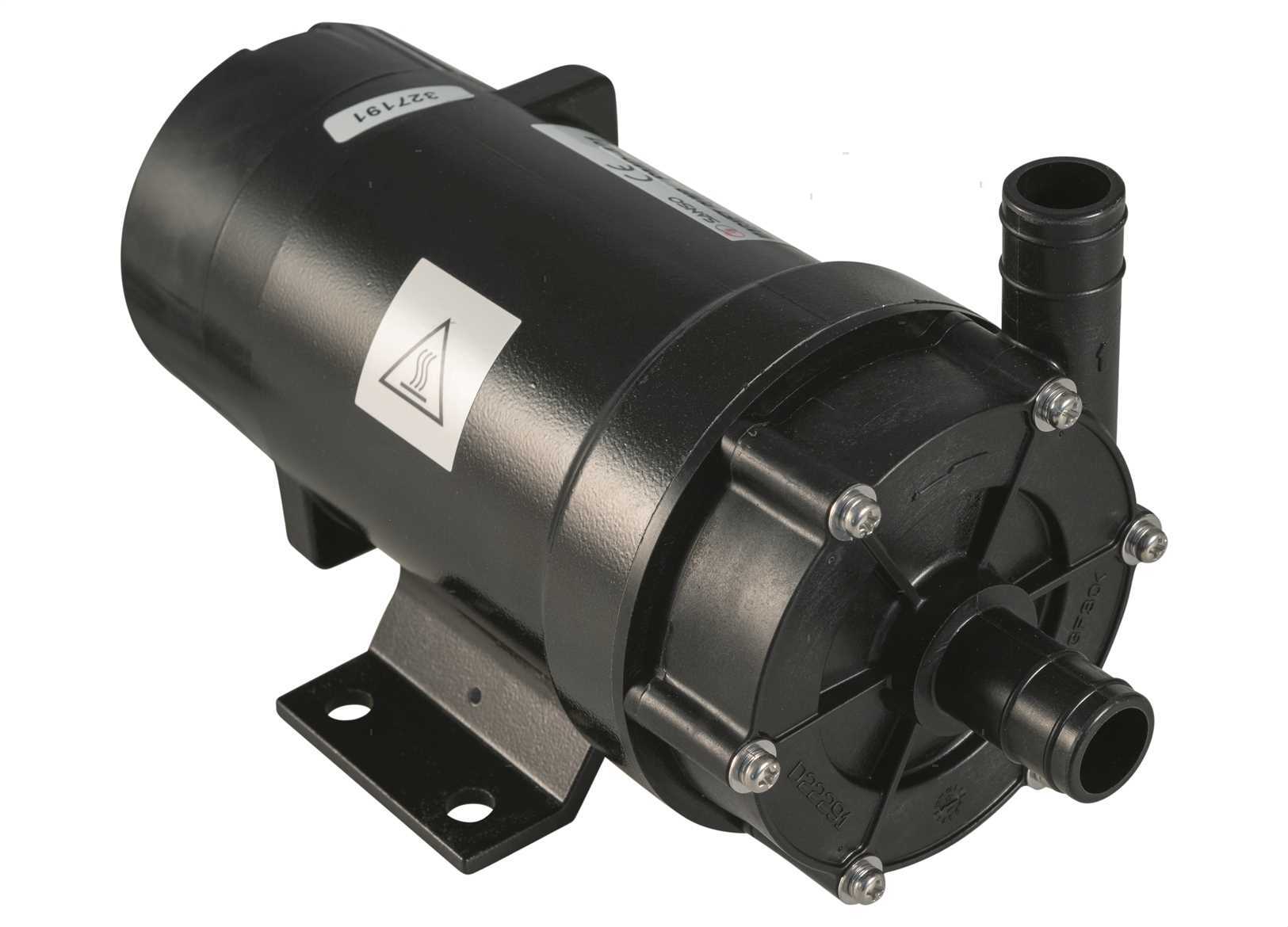

Complete with pipe, drain, filter, pump and sea water intake, panel and 2 ball valves, air intake and delivery grille, air delivery and flow division plenum, main and secondary air pipes.

Technical Data:

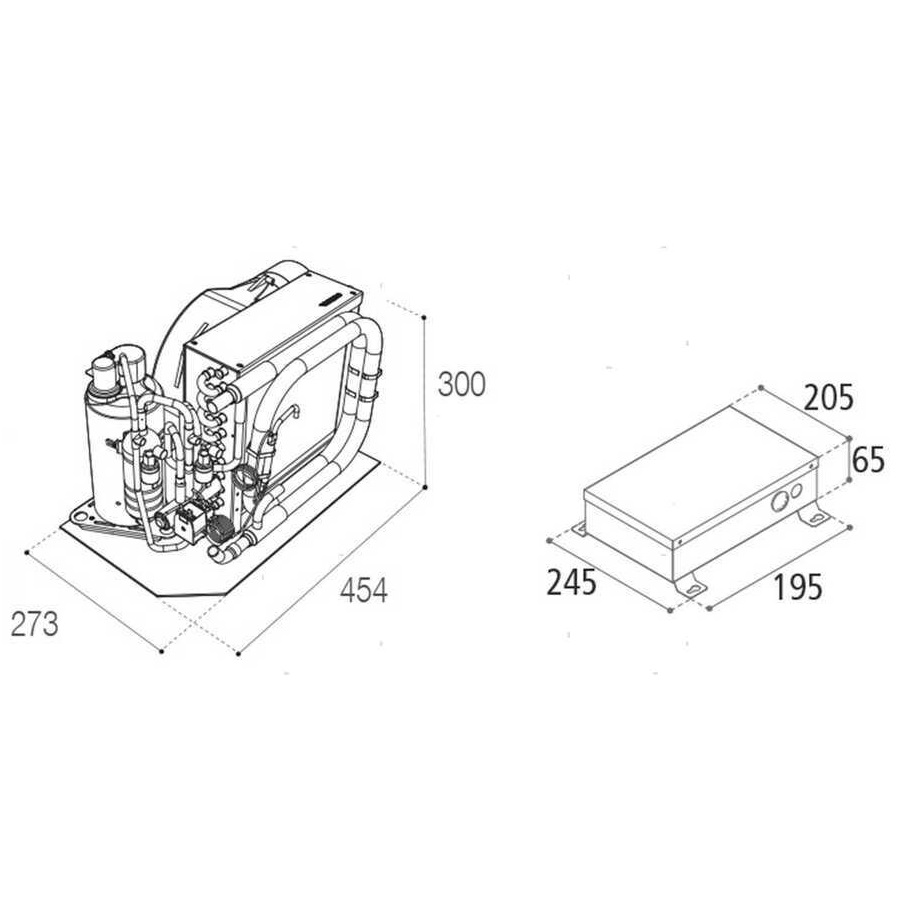

Net weight Kg. 23
Power supply 230V / 1ph / 50Hz
Width mm. 560
Height mm. 326
Depth mm. 285
Air delivery diameter mm. 125
Condensate drain pipe diameter mm. 18
Electrical panel dimensions mm. 173 x 72 x 283
Nominal capacity in cooling mode (BTU / h) 6800
Nominal capacity in heating mode (BTU / h) 8600
Nominal absorption in cooling mode (A) 3.4
Nominal absorption in heating mode (A) 4.2
Treated air flow rate (mc / h) 400
Recommended pump capacity (l / h) 900
