Vitrifrigo Compact 16000 Btu / h air conditioner

Brands VITRIFRIGO
-
Code: MTO01558

(0)

€ 3.454,50 € 5.956,04 -42%

iva inclusa

quantity

MACS air conditioners in assembly kits, suitable for air conditioning
a single room or two adjacent rooms.

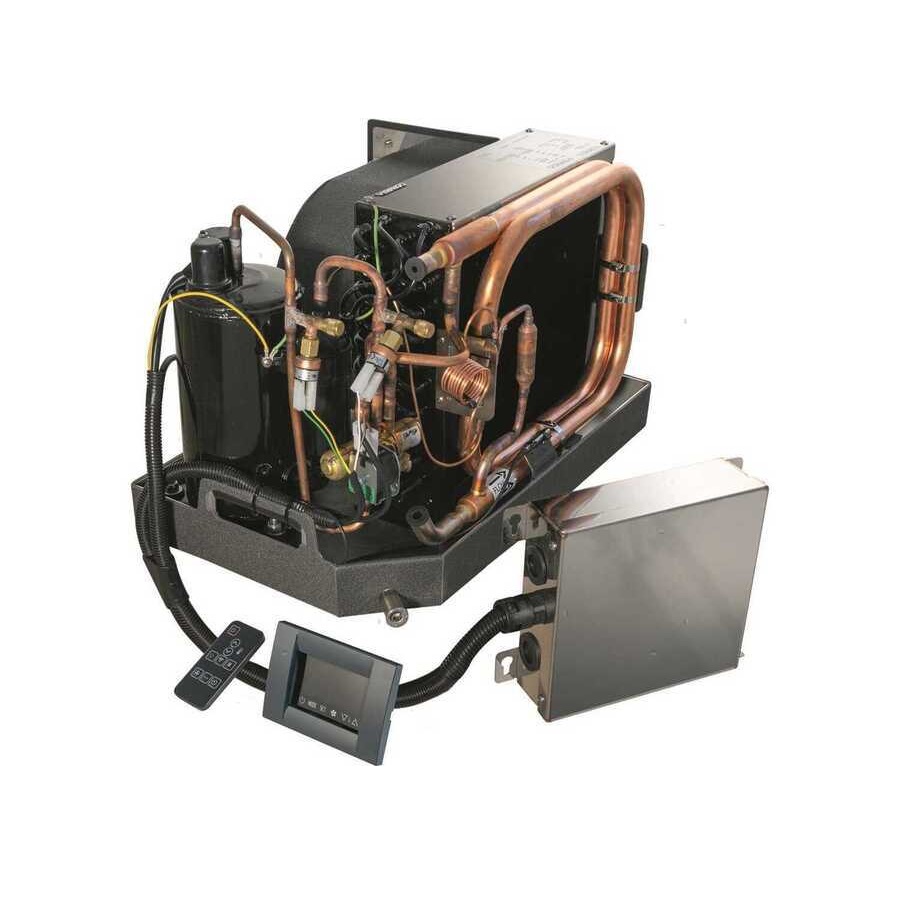

Monobloc structure comprising compressor, condenser, evaporator and
fan, specific for installation on board, with air movement
in insulated pipes and distribution through grids.
Pre-loaded compressor and evaporator unit, no special parts required
tools to be installed.
It works as an air conditioner (cold air) and as a heater (hot air).
For use on the dock or with power generator.

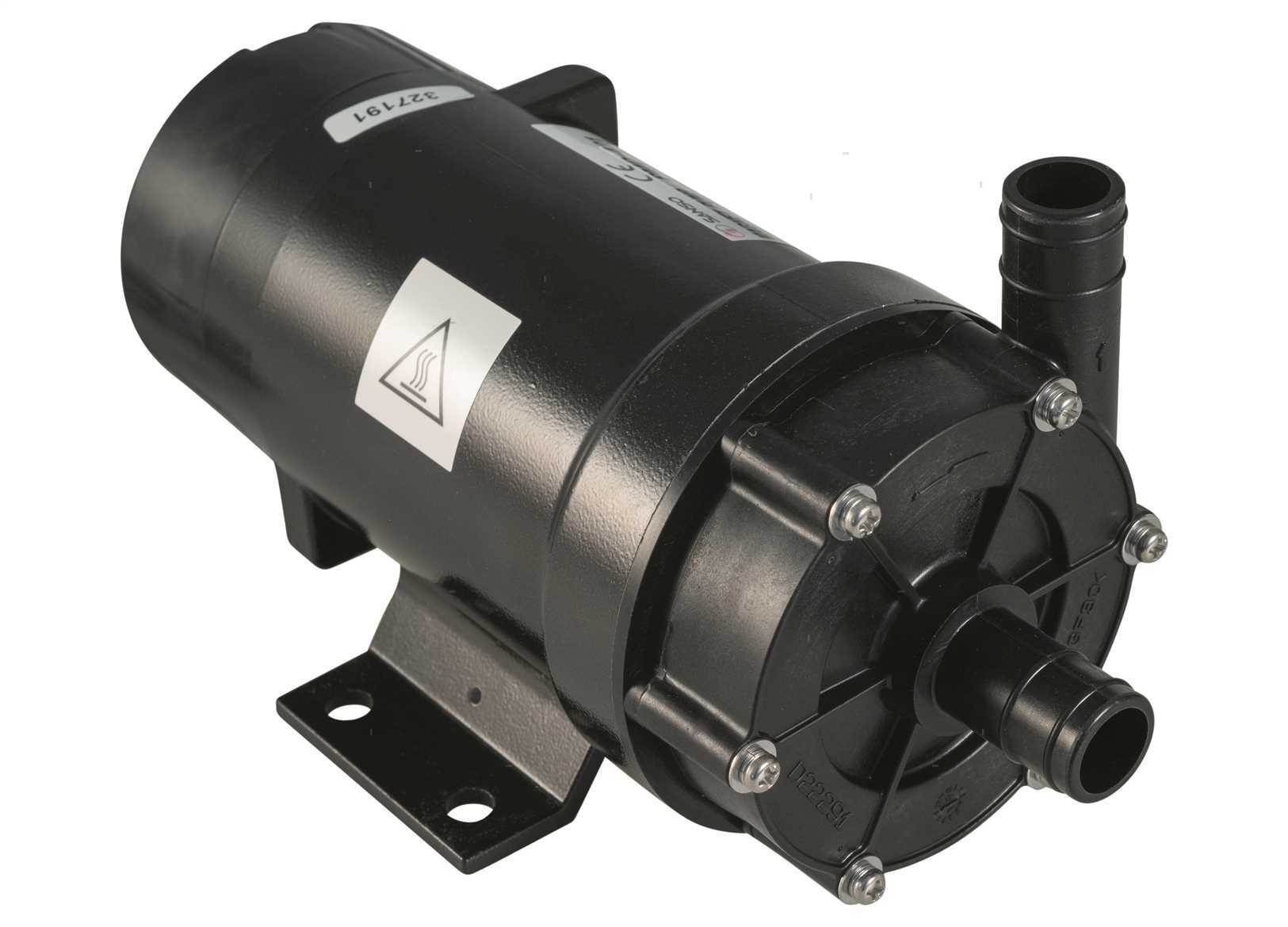

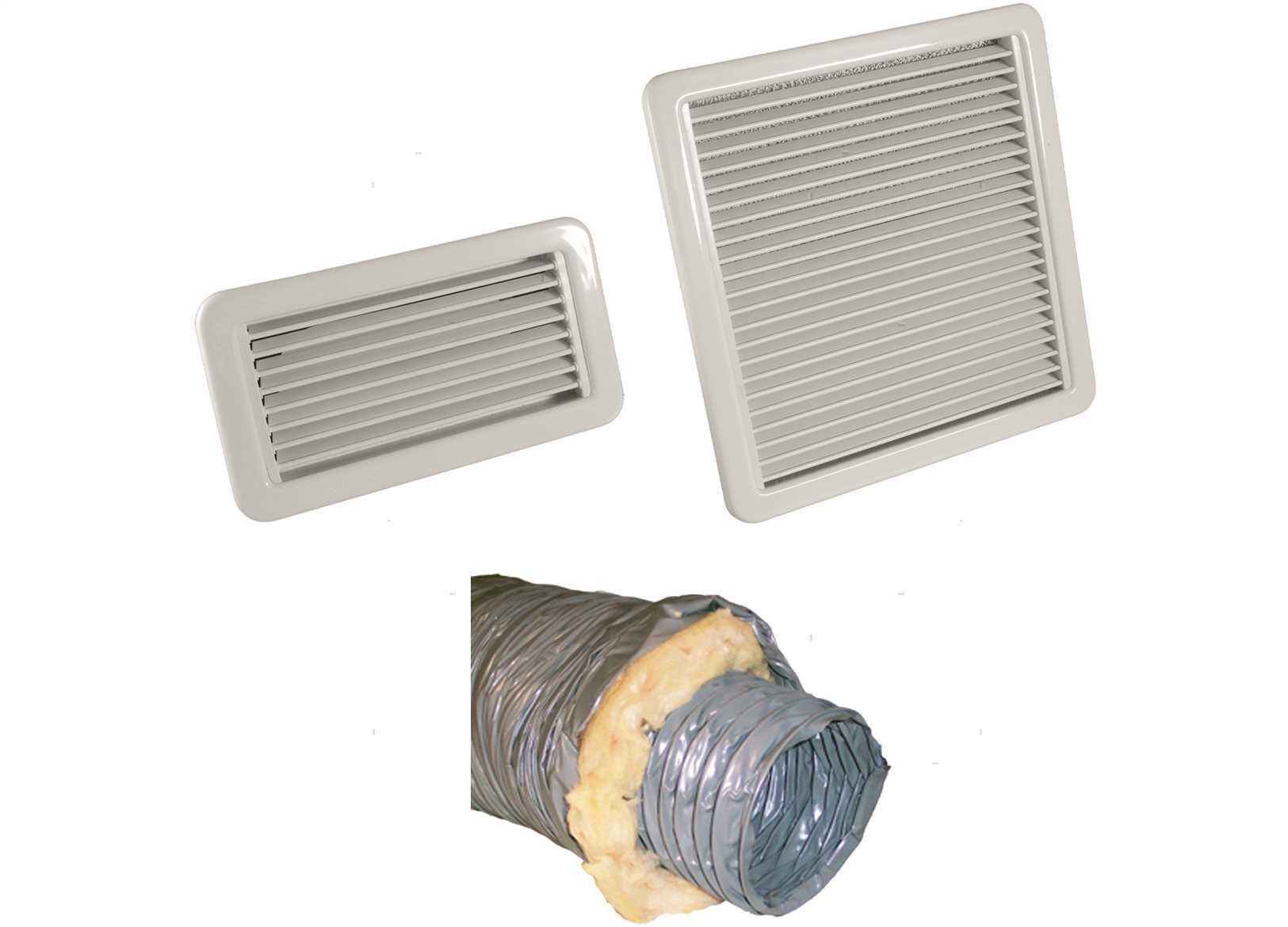

Complete with pipe, drain, filter, pump and sea water intake, panel and 2 ball valves, air intake and delivery grille, air delivery and flow division plenum, main and secondary air pipes.

Technical Data:
Net weight Kg. 40
Power supply 230V / 1ph / 50Hz
Width mm. 660
Height mm. 382
Depth mm. 310
Air delivery diameter mm. 175
Condensate drain pipe diameter mm. 18
Electrical panel dimensions mm. 173 x 72 x 283
Nominal capacity in cooling mode (BTU / h) 15800
Nominal capacity in heating mode (BTU / h) 20000
Nominal absorption in cooling mode (A) 7.2
Nominal absorption in heating mode (A) 7.5
Treated air flow rate (mc / h) 650
Recommended pump capacity (l / h) 1800
