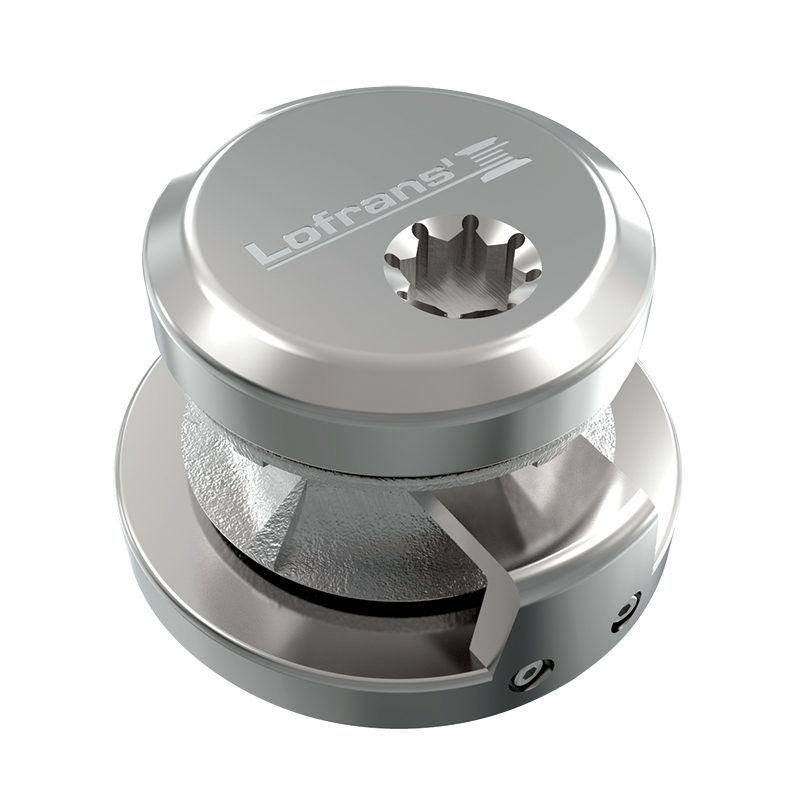

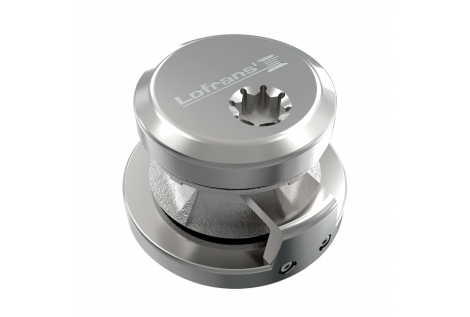

Lofrans SX1 Stainless Steel Windlass Round Base

Lofrans SX1 Inox Round Base - Vertical Winch

Main features:

- Compact round base
- Construction in marine AISI 316L stainless steel
- Independent gypsy and drum operation
- Manual release of the chain
- Chain counter magnet pre-installed as standard
- IP67 resistant electric motor

Standard equipment:

- Contactor / Controlbox
- Handle
- Barbotin / Gypsy for Chain
- CD / instruction manual

The chain tube is also available as an option


The vertical "SX" winches are suitable for sailing and motor boats from 6 to 27 meters in length. They have different engine attributes according to each model. The standard features you can encounter in every SX Series winch are:
- Watertight stainless steel ball bearing in the base (for improved functionality and zero maintenance) which is a unique feature in the winch market.
- The clutch consists of two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid the use of keys and to distribute the weight load adequately.
- The electric motor and the gearbox are connected by a particular coupling consisting of a socket for easier maintenance.
- There is a sensor in the base and a magnet in the beard so that they can be connected to a chain counter.
- Compact round base constructed with marine AISI 316L stainless steel

Available in 500W 12V / 800W 12V version and for Ø6mm and Ø8mm chain
