-30%

Lofrans Circuit Breaker Magnetothermic Circuit Breaker

Brands LOFRANS'

(0)

starting from € 70,04 € 100,05 -30%

iva inclusa

Code	Template	Ah	For motors from W.	Qt.	price
MTO00043-01	Termico	35A	Fino a 700W		€ 134.84 € 94.39 -30%
MTO00043-02	Termico	70A	da 700W fino a 1500W		€ 159.45 € 111.62 -30%
MTO00043-03	Termico	100A	da 1000W fino a 2000		€ 318.94 € 223.26 -30%
MTO00043-04	Termico	125A	1700W		€ 318.94 € 223.26 -30%
MTO00043-05	Idraulico	40A			€ 100.05 € 70.04 -30%
MTO00043-06	Idraulico	80A			€ 114.45 € 80.11 -30%
MTO00043-07	Idraulico	100A			€ 128.56 € 89.99 -30%

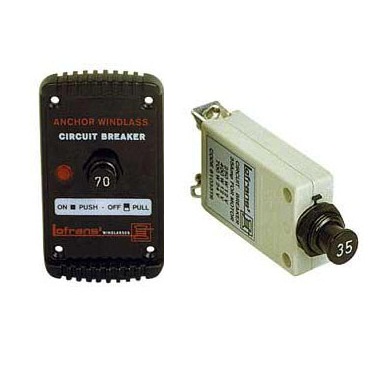

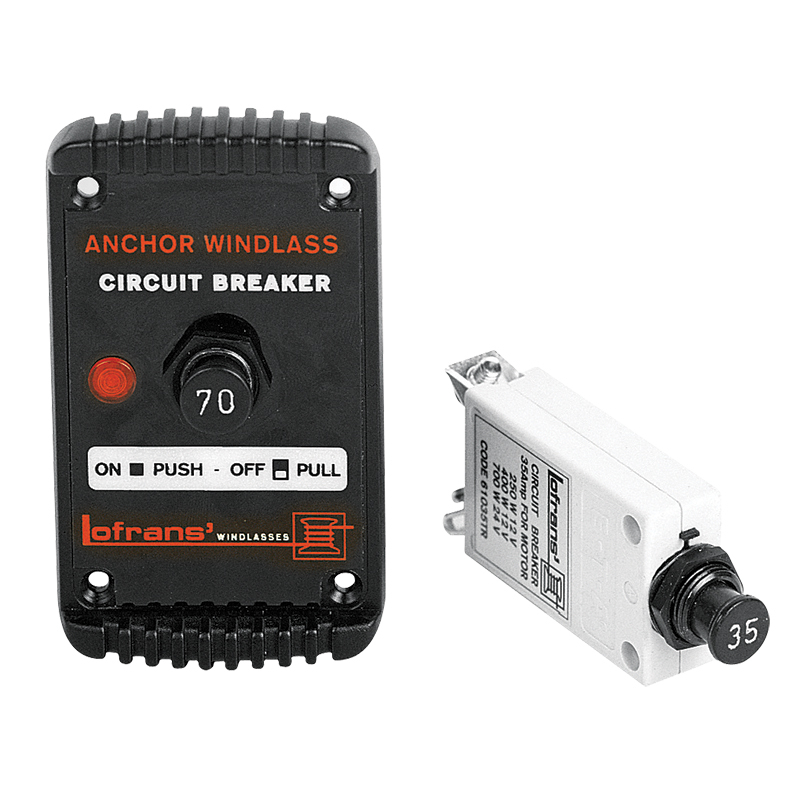

Hydraulic thermal magnetic circuit breaker for Lofrans circuit for winches and windlasses

The magneto-thermal switch is an indispensable component in the electrical system. It performs three functions:
- protects against very dangerous short-circuit currents
- protects the electric motor of the anchor windlass
- removes tension from the anchor windlass whenever you wish

The intervention, in the event of a short circuit, is instantaneous, while for the protection of the electric motor a specific intervention curve for the windlass was designed in collaboration with the ETA (Germany).

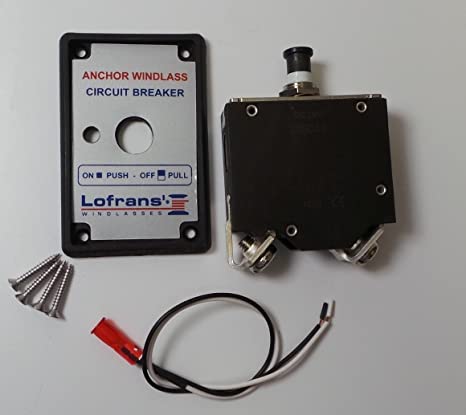

It is possible to reset the switch at the end of the intervention. The magneto-thermal switch is supplied complete with an elegant mask for wall mounting and a luminous LED that indicates the presence of voltage. In addition to being compliant with European standards, this appliance has approvals from the most important bodies (Bureau Veritas, Lloyd's Register etc.) and is a product with characteristics that are truly superior to many other analogues on the market.
