Inflatable Sup Board COMPASS 9'6 "

COMPASS 9'6 "
THE MOST VERSATILE STAND UP PADDLE IN ABSOLUTE


COMPASS 9'6 ”is the most versatile inflatable SAFE sup. It is an all-around stand-up paddle and performing in every activity, from cruising to waves to walks, keeping dimensions, size and weight low. This Sup Safe surprises for the stability and directionality that allow you to paddle in peace. It can also be used to catch small and medium waves. The main feature that makes this sup exclusive is the handling in any situation, it is the best travel sup!


INCLUDED WITH YOUR SUP
The sup includes a backpack with the SAFE logo, a repair kit, a dual flow SAFE pump for inflating 1.8 + 1.8L, max. 26psi pressure, a Sup pressure gauge for pressure control, a waterproof mobile phone case, a central fin with removable SAFE logo and two fixed ones.

TECHNICAL SPECIFICATIONS
MODEL_ COMPASS 9'6 ''
LENGTH_ 290 cm / 9'6 ''
WIDTH_ 81 cm / 32 "
THICKNESS_ 12 cm / 4,75 "
VOLUME_ 208 liters
WEIGHT_ 8,5 kg +/- 10%
TECHNOLOGY_ FUSION-LIGHT System
COLOR_ dark blue
WEIGHT RIDER_ up to 100 kg
INSTRUCTIONS FOR USE_ cruising, surfing, fitness, all round SPECIFICATIONS OF USE

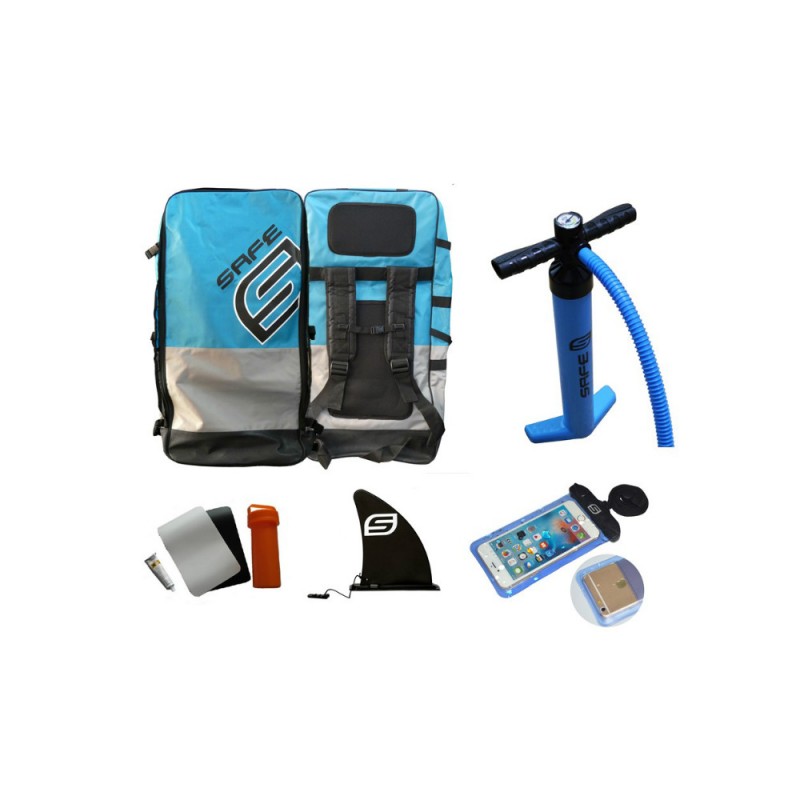

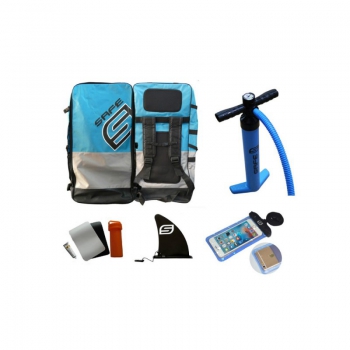

THE KIT INCLUDED IN YOUR SUP

Our KIT included in each SAFE sup includes:

1. A nylon backpack with the SAFE logo, resistant and light, with a top zip closure. It is equipped with n ° 2 adjustable, wide and padded shoulder straps and n ° 1 padded abdominal belt with adjustable buckle for easy transport. The backpack also has two padded side handles that allow it to be transformed into a comfortable travel bag, inside it is large and can contain the stand up paddle, the pump, the repair kit, the removable paddle and other possible accessories.
2. A repair kit which includes: n ° 1 tube of special glue for PVC, n ° 3 PVC patches, a wrench for valve disassembly.
3. A patented SAFE dual flow pump for inflating the inflatable stand up paddles, with the possibility of inflating up to 26psi of pressure. The pump has a slightly elongated shape, is very robust and has an aluminum shaft; these characteristics make it suitable for inflating a sup in 4/5 minutes of time allowing minimal effort. LENGTH_ 61 cm WIDTH_ 27 cm CAPACITY_ 1.8 + 1.8L, max. 26psi pressure DIN EN 16051 CHARACTERISTICS_ Seals and anti-sand filter for long pump life, High air flow piston for easier inflation, double / single action tap, impact gauge
4. A pressure gauge for checking the pressure of the inflatable SUP. The particular configuration allows a progressive measurement.
5. A waterproof and underwater mobile phone case, ideal for taking photos and videos with your mobile phone above and below the surface of the water without the need for an additional waterproof camera and without damaging your mobile phone.
6. A central fin with SAFE logo, in excellent quality black plastic material, which fits with the Pin Lock clip-on sliding system.

FUSION-LIGHT SYSTEM TECHNOLOGY:
All SAFE inflatable SUPs are designed and tested to offer maximum safety without neglecting the excellent performance qualities. Each model has a particular feature that makes it unique for its use, whether surfing, racing or leisure.

FUSION-LIGHT SYSTEM: ADVANCED TECHNOLOGY.

The particularity of SAFE inflatable SUP is in the attention to detail.

Looking at all the individual elements of our sup, we have been able to develop a refined process to improve all aspects of the production of SAFE sup.

We have removed the coating process of the internal section of a thousand drop stitch threads with FUSED PVC. We cover the structure of a thousand internal threads of the sup with an adhesive layer of molten PVC that has been specially formulated to create both a seal on the table and a bonding layer between the inside and the outside of the stand up paddle. We therefore replaced two layers of PVC with a structural and resistant adhesive layer melted directly on the core of a thousand internal threads of the sup.

All this process takes place through the use of machines developed for this particular procedure. The result is a stand up paddle that has all the strength and stiffness properties of our previous double layer construction, but with better performance requirements.

It was possible to improve the performance of the sup by reducing the weight by 20% without compromising rigidity in any way.

FUSION-LIGHT SYSTEM technical features:
- PVC casting construction
- construction with double pvc edge on the canal
- welded internal seams, which maintain the shape of the sup, without the possibility of distortion
- special “Air Block” membrane that eliminates pressure losses
- anti-abrasion and non-slip EVA cover

DROP STITCH: THE INTERNAL MATERIAL OF THE SAFE INFLATABLE SUP
All SAFE inflatable SUPs are made and guaranteed by a high density DROP STITCH system: thousands of tensioning wires that cross the sup, giving it shape, while the air inside it creates pressure and makes it extremely rigid.
We have chosen a high density of material to create a high quality sup with a more solid structure resistant to time and impact.

THE FINS OF THE SAFE INFLATABLE SUP:
Our fin system consists of a thruster set-up with short fixed side fins and a removable central interlocking fin, without the need to have any type of tool to fix it. This system allows you to have 3 rigid fins that increase sup control and the ability to proceed in a straight line and prevents the fins from bending during transport in the backpack as often happens in the system with fixed fins.

THE THICKNESS OF THE SAFE INFLATABLE SUP:
The thickness of our sup corresponds to the exact proportion between shape and rigidity. Building a thicker sup means automatically making it more rigid, but also influencing its technical performance.
If a surf sup is too thick, handling and stability in the water will be compromised. For this reason we have designed the most rigid sup possible while maintaining an excellent level of performance:
11/12 cm is the perfect thickness for a sup oriented to maneuverability and lightness. The thin edges are indispensable when you need to make maneuvers and evolutions in the water.
15 cm is the thickness suitable for stability and speed oriented sup. This thickness ensures maximum rigidity and stability, allows you to carry a lot of weight, and thanks to its greater buoyancy, reduces friction in the water in conditions of rest in the race.

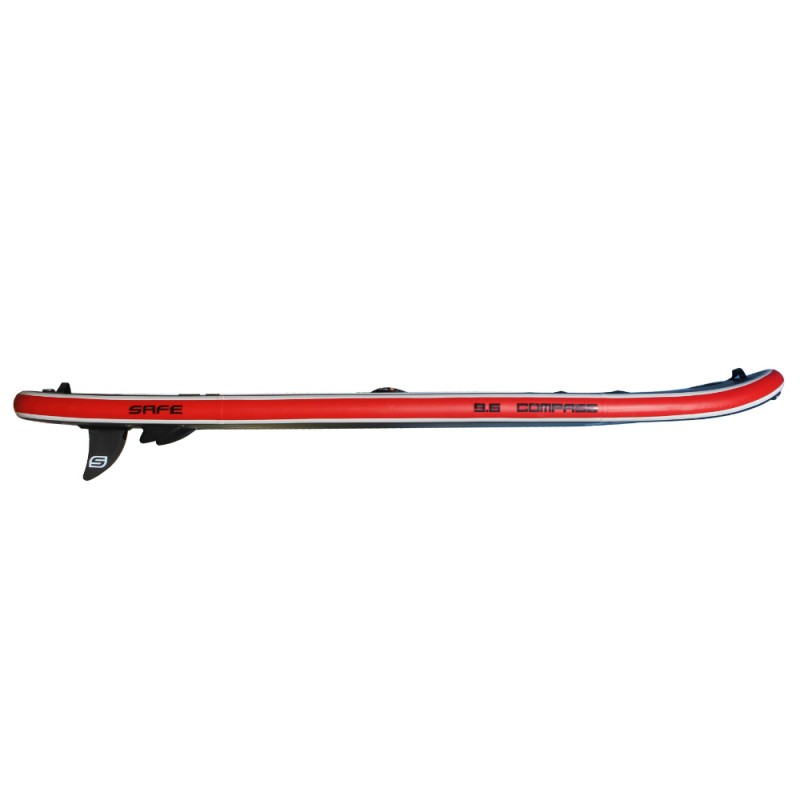

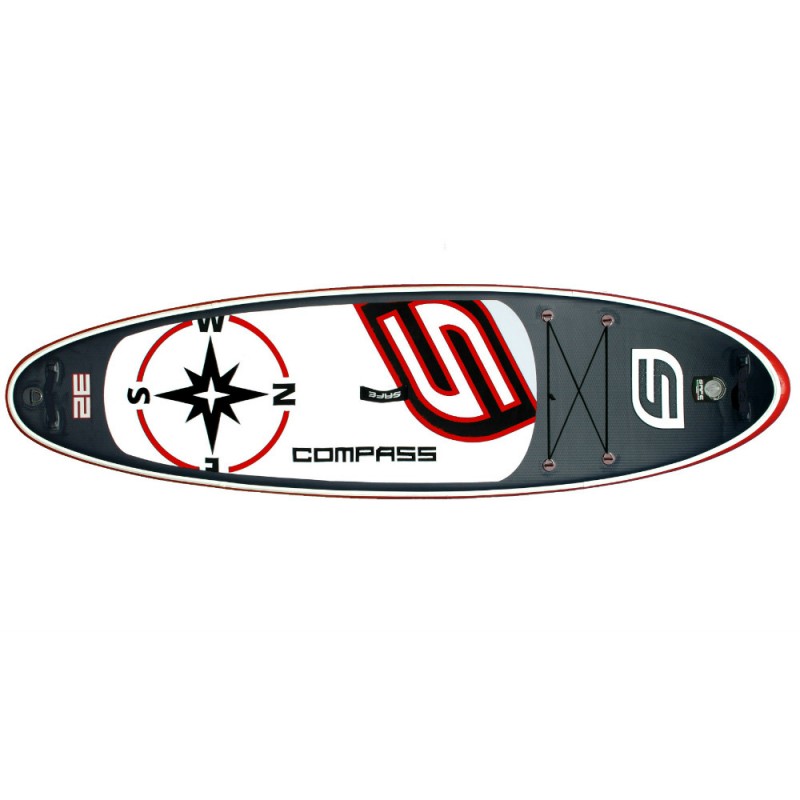

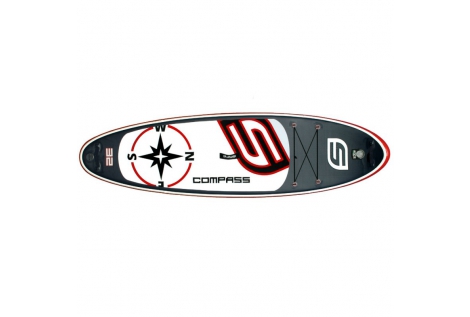

COMPASS DETAILS 9'6 ''

1. The inflation valve is located in the bow of the sup.
2. The sup has two SAFE logo prints positioned on the edges of the rale on the right and on the left.
3. The neoprene handle for transporting the table is located in the center to facilitate transport. The sup also has two nylon handles, one in the bow and one in the stern, which facilitate handling in the water.
4. The sup has a stainless steel ring positioned at the stern which is useful for attaching the leash. An additional stainless steel ring is located under the bow and is convenient for towing the sup by sailboats, tender type, or even for any emergency recovery or anchoring in the water. It also has 4 stainless steel rings with elastic that act as a luggage rack.
5. The sup has a central fin, which is inserted with the sliding system with a pin lock clip and two fixed rubber fins. The central fin with SAFE logo is in black plastic of excellent quality.
