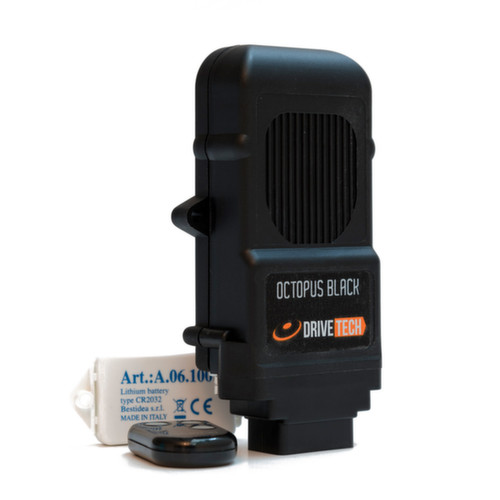

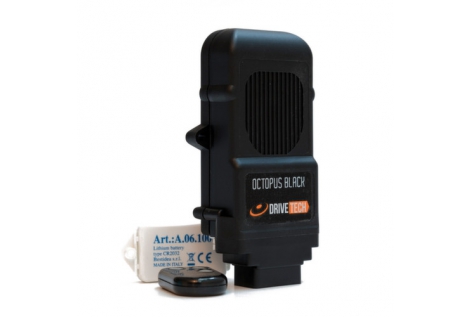

GSM / GPS Black Octopus Satellite Alarm

Octopus BLACK with 1 radio control, 1 wireless sensor and dedicated wiring
Gps / Gsm radio controlled alarm

SPECIFY THE WIRING REQUIRED IN THE PURCHASE PHASE:
YAMAHA - MERCURY - ENVIRUDE - ELECTRONIC ENVIRUDE - or UNIVERSAL

OCTOPUS BLACK is an innovative and complete GPS / GSM security system, specifically designed for the protection of boats, outboard motors and electronic accessories from theft.

Protection active 24 hours a day, at zero cost (there are no surveillance fees to be paid) with a dedicated APP for iPhone and with wireless sensors for targeted and easily expandable protection.
Safe and easy to install thanks to the dedicated Plug & Play harnesses for the major brands of outboard motors.

ON / OFF - It is activated / deactivated by means of a 2.4 GHz radio control (with anti-jamming protection), confirming the insertion with flashing of street lights / anchor lights.
With the system armed, the engine cannot be started.

Octopus is a bidirectional communication system via SMS. In the event of an alarm, the system will send an SMS to the 4 stored telephone numbers specifying the cause of the alarm (up to 9 different causes of the alarm). In addition, the system will call the 4 stored phone numbers.
If the user is equipped with a Smartphone or an iPhone, he can download the appropriate APP for free and talk using the appropriate command icons.

Instant wireless alarm • Thanks to the possibility of installing up to 44 wireless sensors (equipped with anti - protection)
blindness), the system can protect both small boats and large yachts by sending an SMS alarm at the slightest attempt to break in and calling the 4 numbers stored. The main wireless protection points are: engine grille, engine release, lockers, porthole, doors, instrument panel, on-board electronics, tender, garage, tow trolley release.

GPS alarm for towing with the engine off • The GPS sensor constantly monitors the position of the boat with
a tolerance of 100 meters in radius. If the position of the boat exceeds the indicated tolerance, the system sends an SMS alarm and calls the 4 registered telephone numbers.

Cable cut alarm • In case of cable cut, the system goes into alarm by powering itself from the built-in emergency battery.
Bilge water alarm - smoke / IR sensor • any bilge water sensor can be connected,
smoke, IR. In the event of an alarm, the system immediately sends a specific alarm to the stored telephone numbers.

Low battery alarm • If the boat battery approaches the critical threshold, a warning is sent
low battery warning.

Remote interrogation • Octopus is also a bidirectional system: status queries can be made via SMS.

Emergency reset • In the event of a failure, the system can be disarmed using an emergency PIN CODE.

Remote motor lock • In the event of an alarm, the motor can be locked remotely.


Waterproof remote control unit with 1 radio control, with 2.4 GHz receiver, with built-in self-power battery and GPS / GSM module, 1 wireless sensor A.06.100 included.

Technical features
Power supply: 12V dc
Absorbed current: <10 mA
Operating temperature: -30 ° C + 85 ° C
Water protection degree: IP 65/66
International Homologation: CE / e
Average installation time: 60 minutes


Certifications
e / CE compliant with European Directives 97/24 / CE
