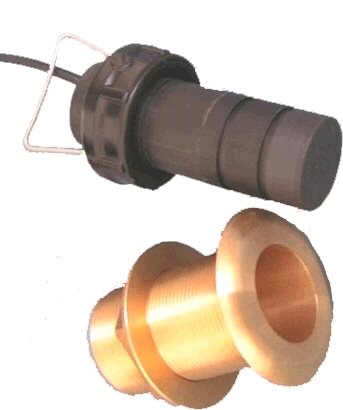

CruzPro ATB120BT Active bronze transducer with through-installation temperature, allows you to view the graph of the seabed with the relative depth and temperature of the water on the connected instrument. Interfaceable via NMEA 0183 to nautical GPS. Max depth 150 Mt. Cable 8 Mt long, hole Ø 50 mm.
Technical features
- Supply voltage: 9.5 - 16.0 Vdc
- Absorption: 0.035 Nominal amps
- Power: 320 watts RMS
- Equivalent power: 6400 Watt DSP (Digital Signal Processing)
- Depth: 300 Mt
- Temperature: 0 ° C (32 ° F) to 32 ° C (90 ° F)
- Nmea output: NMEA 0183 serial at 4800 bps ($ SDDPT, $ SDDBT, $ SDMTW)
- Assembly: Through hull
