CruzPro TL30 Water Level 3 Tanks

Unlike the TL55, the CruzPro TL30 is capable of monitoring the level of 3 different tanks. The reading can be expressed in Liters, Gallons or as a percentage. Compatible with the most common VDO level sensors, Teleflex, Mercury, GM, Stewart-Warner, Centroid, Aero-Tec and many others. It can work with American and European type sensors with resistances from 0-30, 0-70, 0-90, 10-73, 10-180, 33-240, 40-250 Ohm and vice versa. It is possible to select a high and low level alarm for each of the 3 serbaoi. Once activated, an 85 dB alarm will sound and the display will flash.

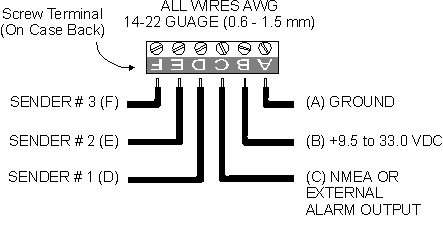

One of the terminals on the rear panel can be set as NMEA 0183 output, as an external alarm output or to activate a pump for water transfer within the set maximum and minimum limits.

For a better view of the display, 5 backlight levels can be selected. It is also equipped with a permanent memory to save all settings, calibrations and alarm values. Even if the indicator is calibrated from the home, the user can modify these settings according to the installation needs. By pressing the front keys it is possible to scroll through the readings of the various tanks.

Technical features

• Supply voltage: 9.5 - 33 Vdc
• Display: 4 digits, 5 backlight levels
• Absorption: 0.018 Nominal Ampere
• Displays the tank level in Liters, Gallons or as a percentage (0-100%)
• Outputs / External alarm: An output terminal can be used as NMEA 0183 output, as an external alarm output or to control a pump for fuel transfer control
• Sensors: All popular American and European resistive sensors with 0-30, 0-70, 0-90, 10-73, 10-180, 33-240, 40-250 ohm (and vice versa) such as GM, VDO, Teleflex , Faria, Centroid, Aerotech, Stewart-Warner, etc.
• NMEA 0183 serial output at 4800 bps ($ IIXDR sentence)
• Alarm: Integrated 85 dB, Settable as minimum and / or maximum fuel
• Fuel transfer control pump: Output that can be used to start an optional pump when the fuel level reaches a pre-established minimum; Programmable to stop an optional pump when the level reaches a pre-established maximum.
• Recessed hole: 55 mm
