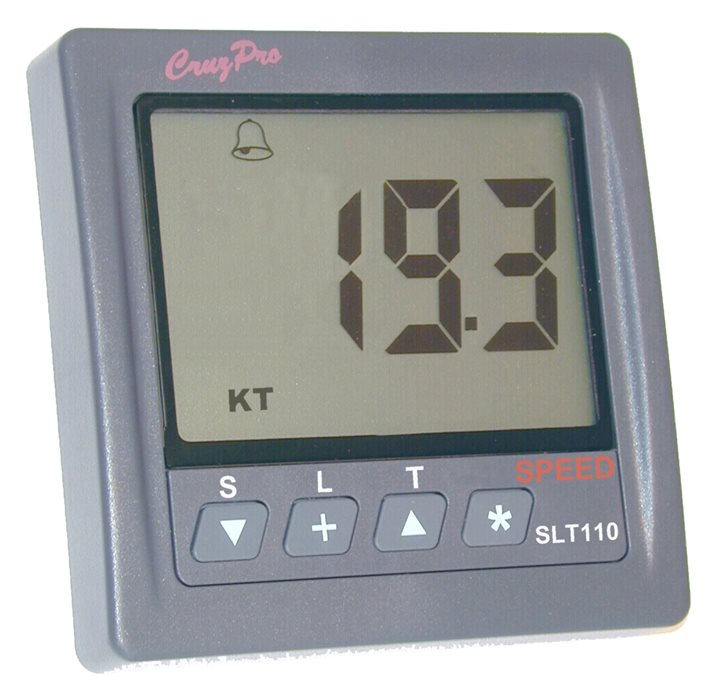

CruzPro SLT110 Stern Sensor Log

The CruzPro SLT110 displays instantaneous speed and average boat speed up to 50 knots. It also detects the exact water temperature in both ° C and ° F down to 0.1 degrees, the Trip Log up to 9.999 Miles, the elapsed time in Minutes / Seconds or Hours / Minutes.

It is equipped with a Race Timer for counting down with two start times that can be set from 1 to 99 minutes, each with an acoustic signal for the minutes and the last 10 seconds. You can choose between 5 levels of backlighting, all adjustments and settings are saved in a non-volatile memory.

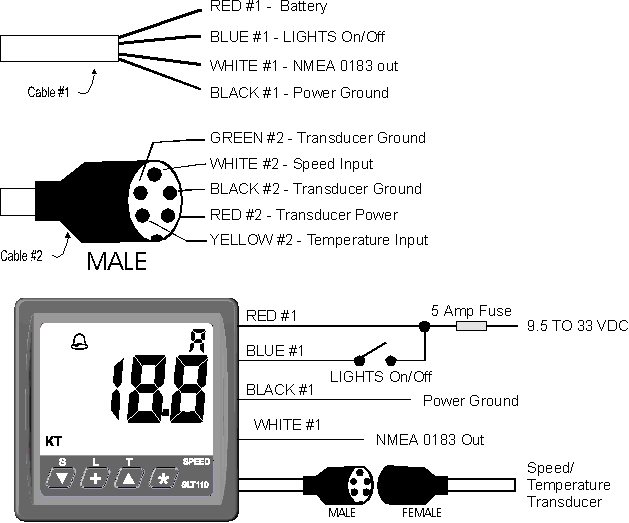

Speed, log and water temperature data are transmitted on the NMEA 0183 output of the SLT110. ASCII information can be used to get a performance history or repeat information on a remote display. 12/24 Vdc power supply. NMEA 0183 output.

Technical features

• Operating voltage 9.5 - 33.0 Vdc
• Absorption: 0.037 amps nominal
• Display: 4 digits, 5 backlight levels
• Data displayed: Speed - 0.0 to 50.0 knots / mph / kph; Average speed - 0.0 to 50.0 knots / kph / mph; Trip Log - 0.0 to 999.9 miles / km / n. miles; Total Log - 0 - 9999 miles / km / n miles; Temperature - 0.0 to 32.0 ° C (32.0 to 90.0 ° F); Race timer: two separate starts, both programmable from 1 to 99 minutes. Time left 59 Min / 59 Sec or 59 Hours / 59 Minutes;
• Data output: NMEA 0183 serial at 4800 bps ($ VWVHW; $ VWMTW; $ VWVLW);
• Alarm: Integrated 85 dB
• Dimensions: 110x110 mm
• Embedding hole: 55 mm
