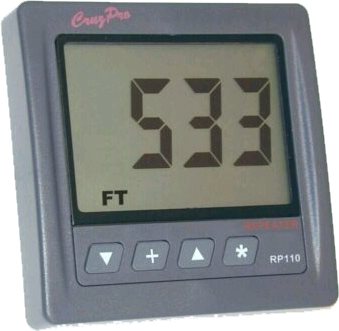

CruzPro RP110 Intelligent NMEA Repeater

€ 443,93 € 467,29

iva inclusa

Code: MTO02111

quantity

The RP110 is a NMEA 0183 repeater with digital readout capable of displaying over 200 NMEA Standard or Proprietary rulings. It can monitor up to 4 separate channels and can be programmed to read new sentences. The format of the new sentences can be downloaded and saved in the "flash" memory of the instrument using a PC with an RS-232 serial port. More than 10 new sentences are programmable and can be overwritten a million times. It has an automatic search system for judgments on all NMEA inputs.

Allows the user to set 5 levels of backlight to have the correct screen display. All settings, calibrations and alarm values are saved in a non-volatile memory. The RP110 can be powered either at 12 or 24 Vdc and absorbs only 0.035 Ampere.

Technical features

Supply voltage: 9.5 - 33 Vdc
Display: 4 digits, 5 backlight levels
Absorption: 0.035 Nominal amps
Data: 200 NMEA 0183 pre-programmed sentries, Flash memory to download 10 more sentences and reprogram them 1 million times
Input: 4 separate NMEA 0183 inputs
Dimensions: 110x110 mm
Recessed hole: 55 mm
