CruzPro MaxVu110, Multi-Reader with SW

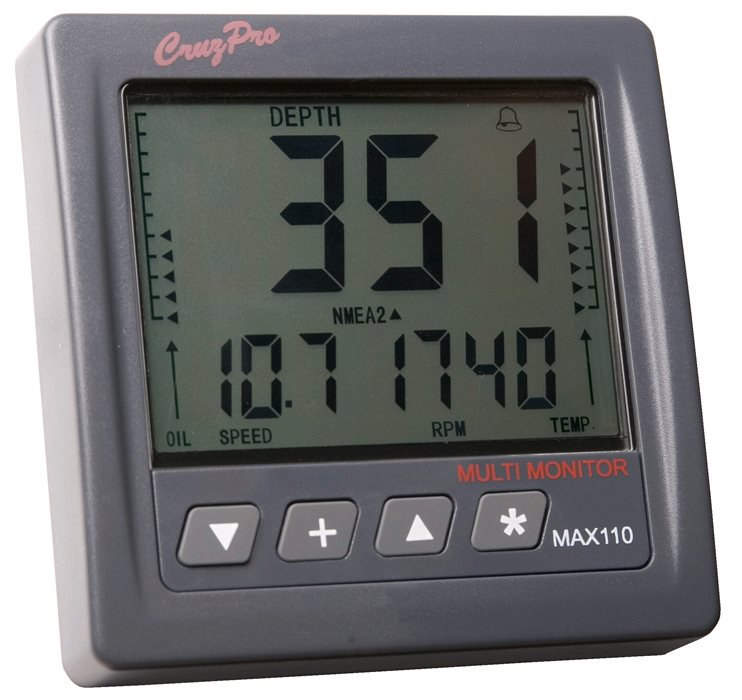

The MaxVU110 is a digital multifunction tool. Simultaneously displays 5 data series, 3 of these numerically and 2 more on lateral graduated scales. Data such as RPM, Engine Temperature, Engine Oil Pressure, Fuel and Tank Levels, Battery Voltage, etc. can be displayed. The user can decide which of the 5 data to display for each of the 16 different Display Configurations. With the press of a button, you can easily change the displayed screen. The user can configure the tool to view the data necessary for each specific need quickly and easily.

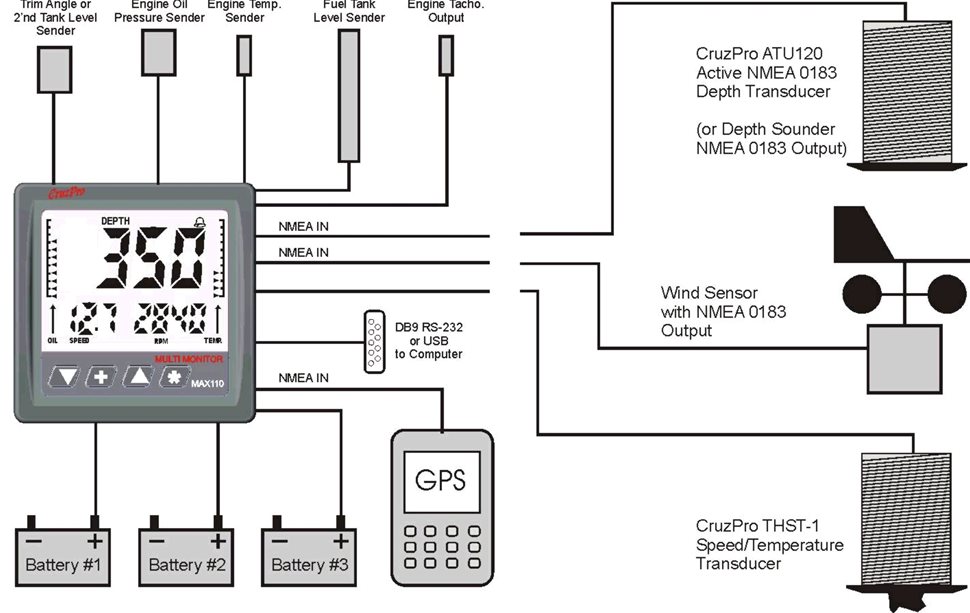

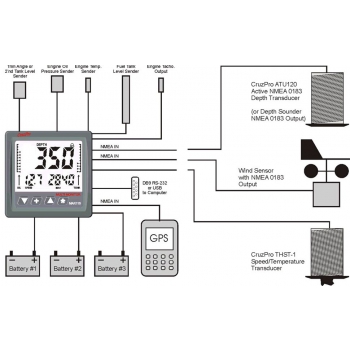

No optional box or other accessory is required. All the readings are carried out by the MaxVu110 itself, just connect the NMEA 0183 outputs of each instrument on board and you can have all the readings on a single display. The alarms can be set for each data detected. When one of the measured values goes out of the preset range, the instrument will emit an alarm at 85 dB and the display will flash.

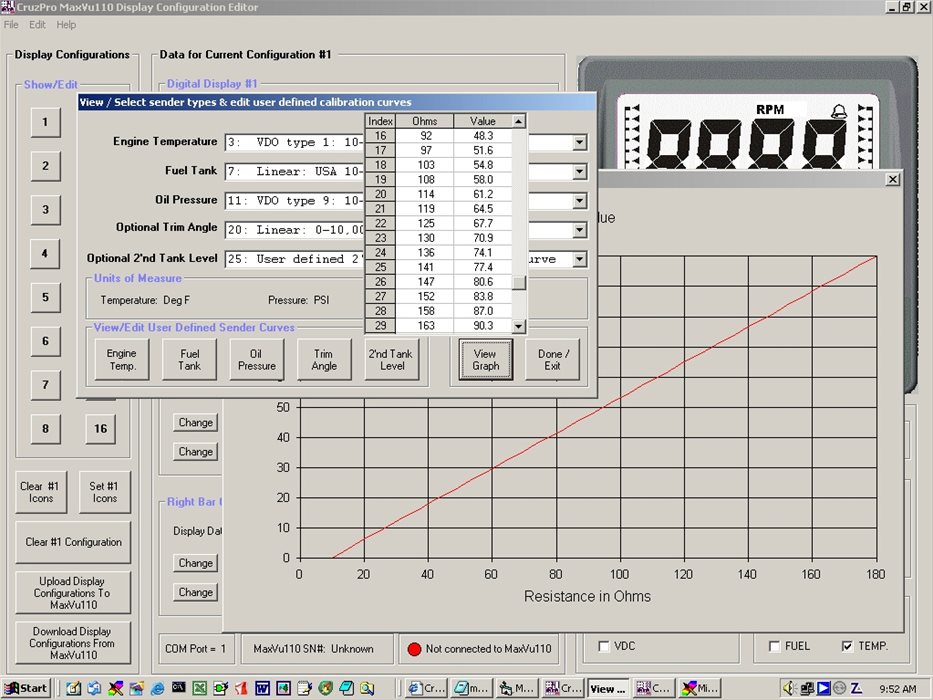

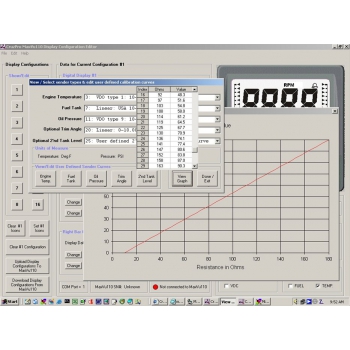

The MaxVu110 can simultaneously monitor 4 NMEA 0183 inputs and receive two sentences for each of these, display 3 of these data numerically and another 2 on lateral graduated scales. Already programmed with the curves of the most popular Temperature sensors such as CruzPro BOL1 and TMT-1, Oil Pressure, Fuel Levels etc. from VDO, Teleflex, Mercury, GM, Stewart-Warner, Centroid, Aero-Tec and many others. It can work with American and European type sensors.

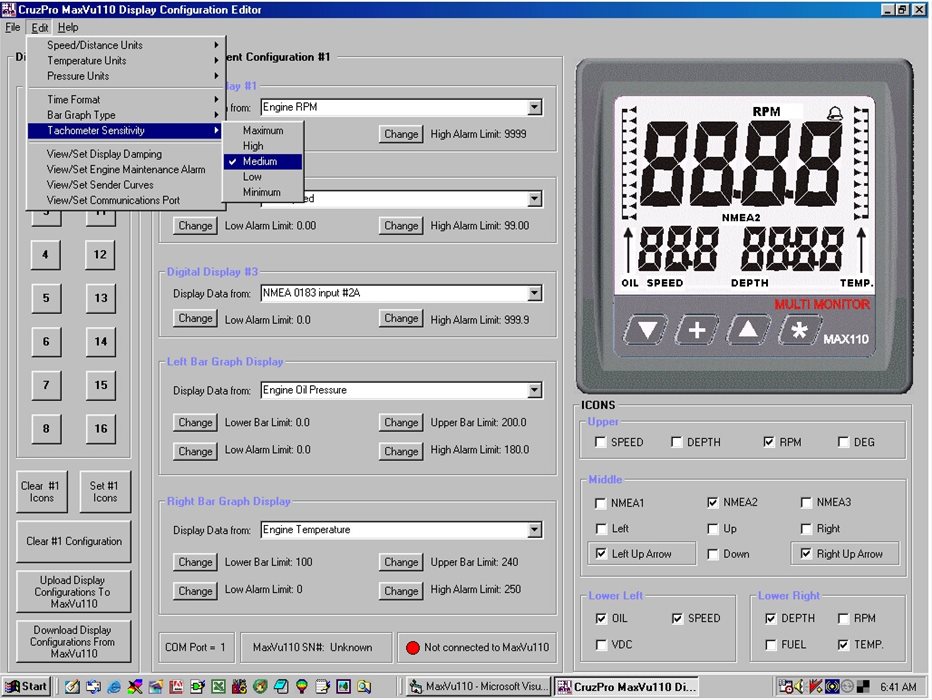

The 16 Display Configurations are factory set with the most popular readings while the others can be easily configured using a PC. The Windows compatible software allows you to create and transfer each Display Configuration from the PC to the instrument. It is also possible to save these pages for later recall and modification. The MaxVU110 can be connected to the PC via RS-232 or USB cable using the supplied cable. The supplied software is compatible with Win98, Win2K, WinNt, WinXP, Vista, Win7 operating systems and can also be downloaded from the official CruzPro website even without having purchased the tool in order to test its ease of use.

Night vision is facilitated by the possibility of selecting 5 levels of backlighting. All settings, calibrations and alarm settings are saved in a permanent memory.

Technical features

• Power supply voltage: 12 - 24 Vdc
• Power consumption: 0.095 to 0.15 amps nominal depending on the backlight level, number and type of sensors connected
• Operating temperature: 0 to 50 ° C (32 to 122 ° F)
• Display: 3 digits, 5 levels of backlighting with external ignition
• Data displayed: Battery 1 voltage; Battery 2 Voltage; Battery voltage 3; Speed; Depth (from NMEA ruling); 8 alarms settable by time; Cruise time; Engine Hours; Engine revolutions; Maintenance alarm Engine; Engine Oil Pressure; Engine Temperature; Remaining Fuel; NMEA # 1 Input A; NMEA # 1 Input B; NMEA # 2 Input A; NMEA # 2 Input B; NMEA # 3 Input A; NMEA # 3 Input B; NMEA # 4 Input A; NMEA # 4 Input B; Race 1 timer; Race 2 timer; Optional second tank level; Temperature 2; Sea water, etc; Clock; Total Log; Trip Log; Total fuel used; Partial fuel used; Trim Angle display option; Temperature 3 optional;
• Alarm: Integrated 85 dB, Settable as minimum and / or maximum for each data
• Units: Knots, Miles, KM / H; Grades C and F; PSI, Bars; Feet, Meters, Arms (from NMEA input)
• Dimensions: 110x110 mm
• Embedding hole: 55 mm
