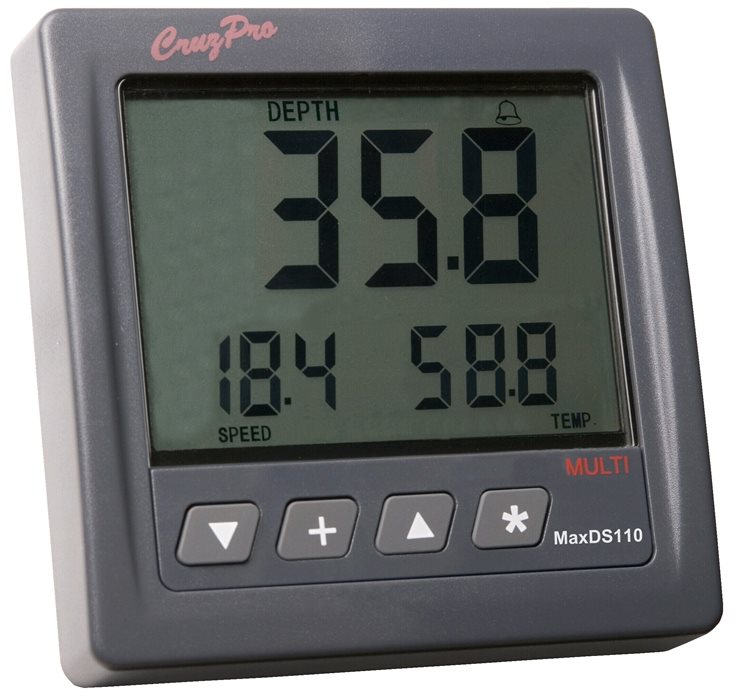

CruzPro MaxDS110, Eco / Log Without Transd

The MaxDS110 is an Eco / Log that allows you to simultaneously view three data such as Depth, Speed, Water Temperature, Log, Race Timer, Time and Battery Voltage on a digital display in various formats. It is possible to set high or low depth alarms, speed, water temperature, navigation time and battery voltage. Or 8 different timed alarms and 2 independent Race Timers from 1 to 60 minutes.

It is possible to set the draft of the transducer to have a correct reading of the depth and a filter to calibrate the updating of the depth and speed readings. Through the front keypad it is possible to scroll up to 16 different pre-set screens for reading predefined data and each setting is saved in a non-volatile memory.

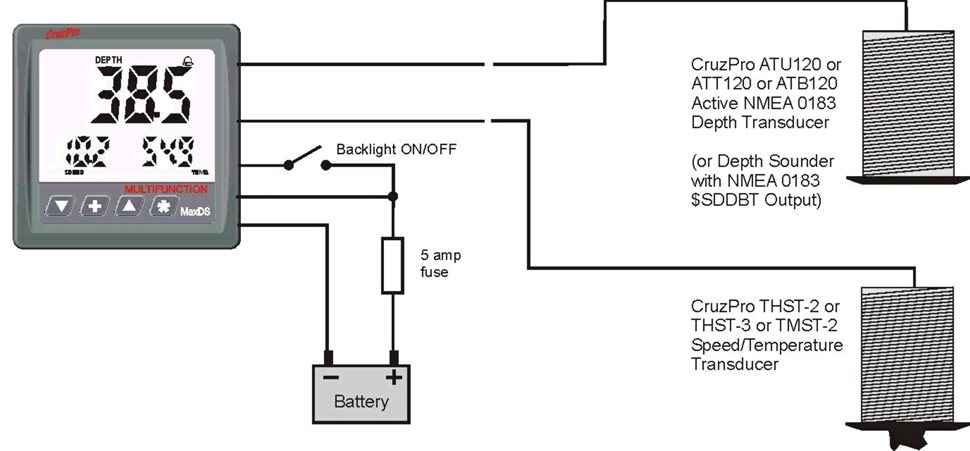

Different types of depth and speed / temperature transducers are available, in plastic and bronze with through-hull or stern installation. No external box or other accessory is required. All readings are carried out by the MaxDS110 itself, just connect the transducers to have a complete instrument.

Each minimum and maximum reading alarm can be set for each data detected. When one of the detected data goes out of the predetermined range the instrument will emit an alarm at 85 dB and the display will flash. 5 levels of backlighting can also be set to facilitate night vision.

Technical features

• Power supply voltage: 12/24 Vdc
• Absorption: from 0.095 to 0.15 amps nominal depending on the number and type of transducers connected
• Operating Temperature: 0 ° C to 50 ° C (32 ° F to 122 ° F)
• Display: 3 digits, 5 levels of backlighting with external ignition
• Displayed data: Battery voltage, Speed, Porfondity (from NMEA input), 8 Alarms that can be set according to time, Navigation time, Race 1 and 2 timers, Water temperature, Clock, Total and partial log
• Units of measurement: Knots-Miles-Km / h, ° C - ° F, Feet-Meters-Arms (from NMEA input)
• Alarm: Integrated 85 dB, Settable as minimum and / or maximum for Depth, Speed, Battery Voltage, Water Temperature
• Dimensions: 110x110 mm
• Embedding hole: 55 mm
