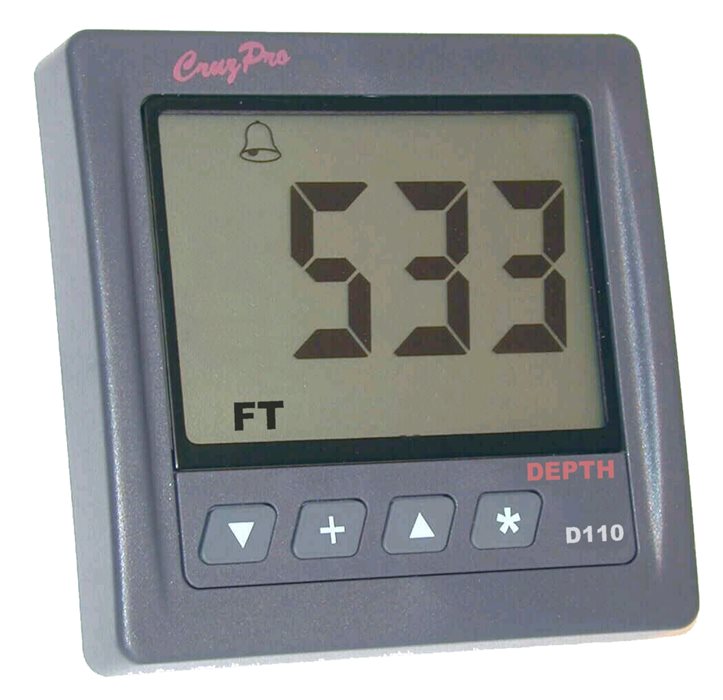

CruzPro D110 Depth Sounder - Transd. Stern

(0)
€ 512,66 € 539,64
iva inclusa
Code: MTO02108
quantity
Print

The CruzPro D110 is a depth sounder that uses DSP (Digital Signal Processing) technology to detect the bottom from a minimum of 0.4 Mt up to 300 Mt. You can adjust various update times of the bottom reading to display the depth in a more stable.

Complete with all common depth gauge functions such as shallow and shallow water alarms and Keel Offset to calibrate the depth at which the transducer is installed. You can choose between 5 levels of backlighting which can also be turned off or on remotely. All adjustments and settings are saved in a permanent memory.

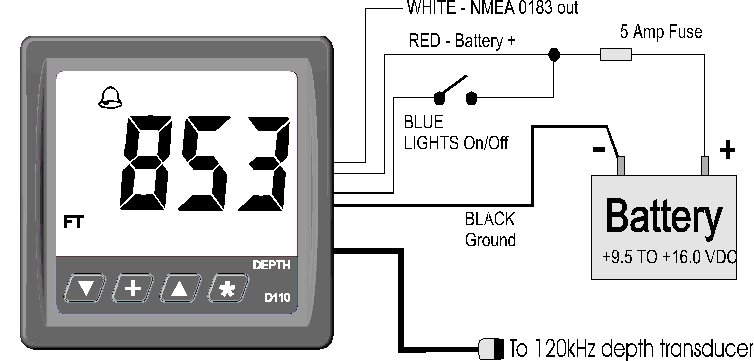

Units of measurement selectable between meters, feet or arms. NMEA 0183 output or external alarm output. 12 Vdc power supply.

Technical features

  • Operating voltage: 9.5 - 16 Vdc
  • Display: 4 digits, 5 backlight levels
  • Absorption: 0.035 amps nominal
  • Operating temperature: from 0 ° to 50 ° C
  • Data displayed: Depth, shallow and deep water alarms, Keel offset, readings in feet, meters and fathoms

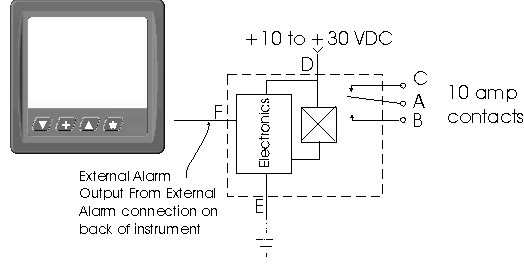

  • NMEA 0183 serial output at 4800 bps, ($ SDDPT) Also programmable as external alarm output
  • Alarm: Integrated 85 dB
  • Dimensions: 110x110 mm
  • Built-in hole 55 mm
