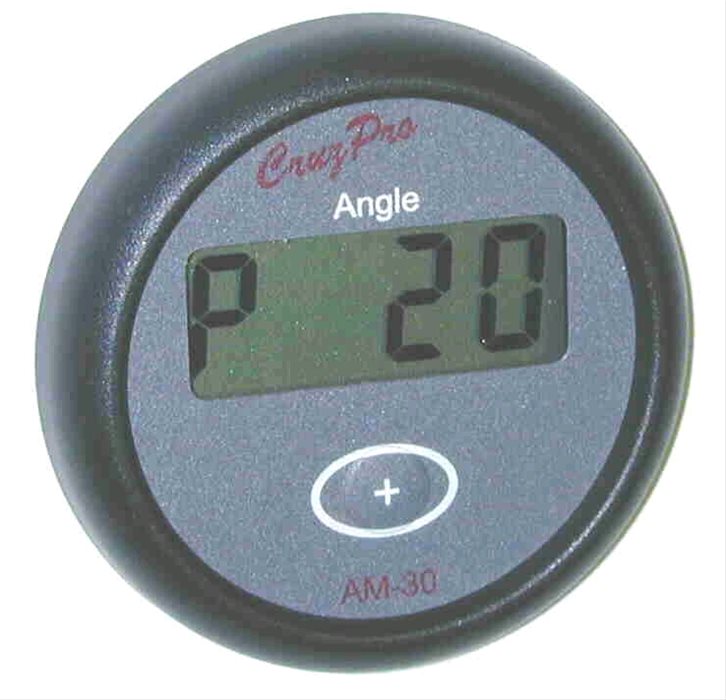

CruzPro AM30 Rudder Angle

  • Brands CRUZPRO
  • -
  • Code: MTO02092
(0)
€ 427,70 € 450,21 -5%
iva inclusa
quantity
Print

The AM-30 displays the rudder angle with reading between -90 and +90 degrees and is able to work with the most common sensors. It is possible to calibrate the sensor installed on board and set the zero (rudder centered).

It is possible to set alarms independently for starboard and port steering limits. When activated the meter will sound an alarm at 85 dB and the display will flash. It is also possible to select 5 backlight levels and all settings, calibrations and alarm values are saved in a non-volatile memory.

Technical features

  • Power supply voltage: 9.5 - 33 Vdc
  • Display: 4 digits, 5 backlight levels.
  • Absorption: 0.030 amps nominal.
  • Data: Rudder angle between -90 and +90 degrees starboard and port.

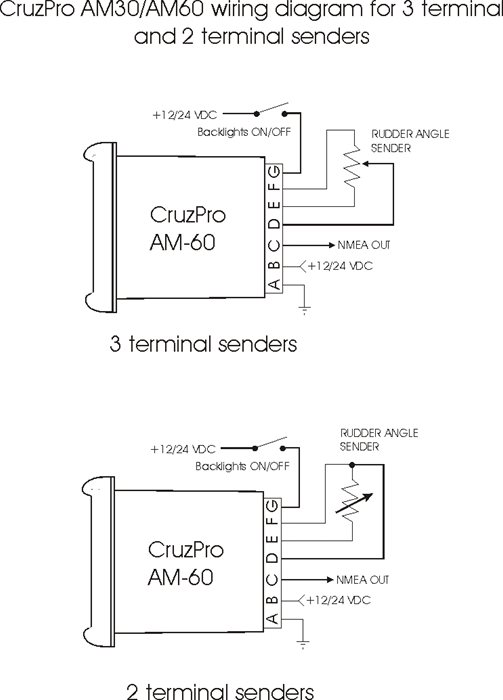

  • Input: All popular bar sensors.
  • NMEA 0183 serial output at 4800 bps, It can also be used as an external alarm output.
  • Alarm: Integrated 85 dB, Can be set as minimum and / or maximum steering both to starboard and port.
  • Embedding hole: 55 mm
