GENERAL CHARACTERISTICS
● Apparent diameter: 4 "(-100 mm)
● Internal gimbal suspension
● Built-in compensation
● Standard 12 V lighting (24 V on request)
● Internally accessible in case of repair
● "normal" and "high speed" versions (V. 25 knots)
● RINA testing. on request
● Black / blue / white rose with gradation of 5 ° or 2 °
APPROVALS
1. Based on the Ministerial Decree of 29 September 1999 n. 388 for safety equipment for pleasure boats outside the 6 miles, Riviera has been approved with the Ministerial Decree approving the prototype 588/2000 for Urania 4 compasses ".
2. MED certificate in accordance with EC directives 96/98 regarding lifeboats and rescue boats.
3. RINA approved type certification for fishing and work boats of less than 150 GT.

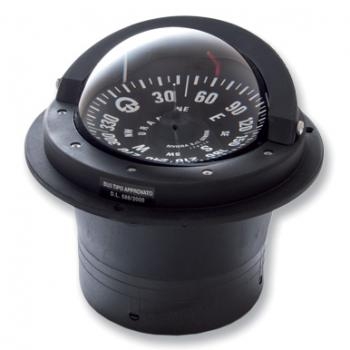

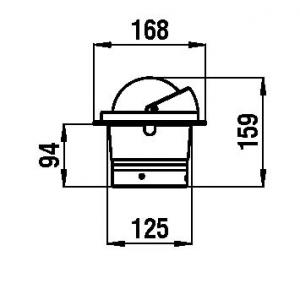

Compass Urania BU3 horizontal recessed installation
SUSPENSION: Internal cardan shaft
LIGHTING: LED 12V (24V on request)
READING: Back - red faith line
PINK DIVISION: 5th - 2nd
APPARENT DIAMETER: 4 "- 100 mm
